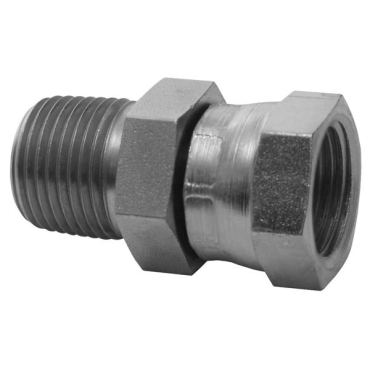

Dixon Valve & Coupling 1404-8-8 Male NPTF x Female NPSM Swivel Nut

Product Description

The Dixon Valve & Coupling 1404-8-8 is a male NPTF to female NPSM swivel nut designed for effective fluid transfer and connection. This fitting is designed to prevent hose stress during assembly and offers a compact design for use in tight spaces. It features a female NPSM swivel that seals at a thirty-degree angle.

• Designed to prevent hose stress due to twisting during assembly
• Compact design allows for easy assembly in confined areas
• Female NPSM swivel seals on a thirty-degree seat

Product Highlights

This swivel nut is useful in applications requiring strong and secure connections, ideal for hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101766093

Technical Specifications

• Male Thread Size: 1/2-14
• Female Thread Size: 1/2-14
• Finish: Zinc Plated
• No. of Ends: 2
• Fitting Angle: Straight, Swivel
• Adapter Type: NPTF x NPSM
• Shape: Straight
• End Type: Female x Male
• Material: Zinc Plated Steel
• Female Thread: NPSM
• Fitting Type: Pipe Swivel Adapter
• Working Pressure: 3000 PSI
• End Types: NPTF & NPSM
• Male Thread: NPTF
• Weight: 0.22 LB
