Dixon Valve Coupling 1260608C Brass Barbed Hose Fitting

Product Description

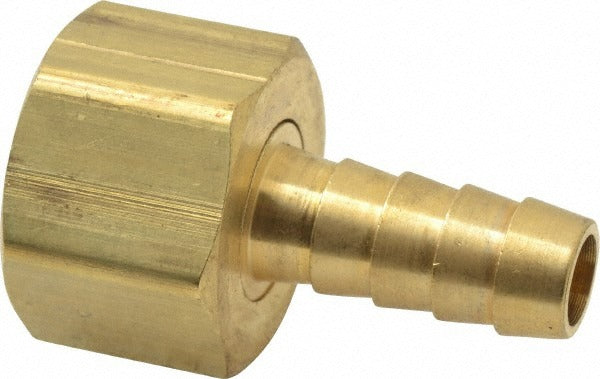

The DIXON VALVE COUPLING 1260608C is a brass female barbed hose fitting designed to create a secure, leak-resistant connection between a threaded female port and a flexible hose line. The fitting features a 1/2 inch NPSM female swivel end with a gasket seat on one side and a 3/8 inch hose barb on the other. The swivel design allows for easy hand alignment during installation without twisting the hose. Constructed from brass, this fitting resists corrosion in water, air, and many fluid transfer applications. It is a standard component installed by plumbers, HVAC technicians, and industrial maintenance professionals in low-pressure fluid and pneumatic systems.

This fitting is suited for residential and light commercial applications where a threaded female NPSM port must transition to a 3/8 inch ID flexible hose. Typical install scenarios include water supply lines, compressed air distribution, chemical transfer tubing, and general-purpose fluid handling. The female swivel end with gasket seat allows connection to a male-threaded fitting without requiring thread sealant tape on the swivel interface, streamlining assembly in tight spaces or frequently serviced connections.

Key Features

• Brass construction provides corrosion resistance for water, air, and general fluid service
• 1/2 inch NPSM female swivel end with gasket seat for leak-resistant hand-tight alignment
• 3/8 inch hose barb sized for 3/8 inch ID flexible hose
• Hex head size of 0.9375 inches allows standard wrench installation
• Threaded connection type compatible with standard NPSM male fittings
• Single-piece unit sold individually, no assembly required

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 1/2 inch NPSM female threaded ports mated to 3/8 inch ID flexible hose lines.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in systems subject to local plumbing codes. Shut off and depressurize the line fully before removing any existing fitting or connecting this part. The swivel gasket seat requires a serviceable gasket for a proper seal; inspect the gasket before use and replace if worn. Do not overtighten the swivel end, as the gasket provides the seal and excess torque may damage the seat.
