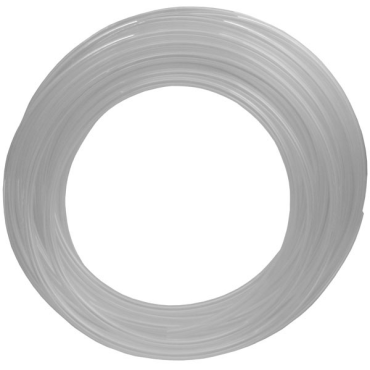

Dixon Valve & Coupling 08160 Polyurethane Tubing 1/4 in 100 ft

Product Description

Dixon Valve & Coupling offers the 08160 Polyurethane Tubing, a reliable solution for various applications where flexibility and durability are required. This tubing features a quarter inch outer diameter and a sixteenth inch inner diameter, making it suitable for pneumatic and hydraulic systems.

• Length: One hundred feet
• Material: Polyurethane
• Operating pressure: One hundred forty-eight psi

Product Highlights

Designed for extreme conditions, this tubing remains functional at temperatures ranging from negative forty degrees Fahrenheit to one hundred sixty-five degrees Fahrenheit.

Product Information

Standard Information

• Part Number: 08160
• Brand: Dixon Valve & Coupling

Technical Specifications

• Wall Thickness: 0.045 in
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 165 °F
• Operating Pressure: 148 psi
• Tube I.D.: 0.16 in
• Tube O.D.: 1/4 in
• Length: 100 ft
• Weight: 1.5 LB
• Color: Transparent
• Inch/Metric: Inch
