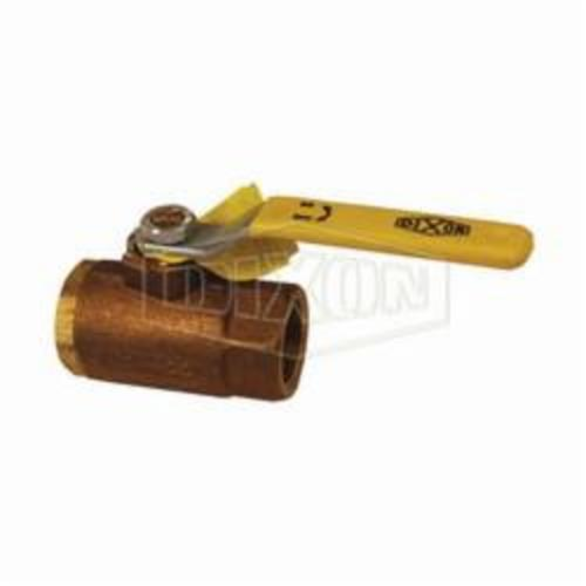

DIXON VALVE BBV50 Bronze Ball Valve

Product Description

The DIXON VALVE BBV50 is a durable bronze ball valve suitable for regulating the flow of air, water, oil, and gas. This valve includes female NPT threads and a PTFE seat for secure sealing. It features a full port design for maximum flow and has a blow-out proof stem for added safety.

• Constructed from bronze material
• Meets WW-V 35C, Type II Composition standards
• Pressure rating of 600 PSI WOG

Product Highlights

The DIXON VALVE BBV50 is ideal for both domestic and industrial applications, providing reliable performance in various piping systems.

Product Information

Standard Information

• Manufacturer: DIXON VALVE
• MPN: BBV50

Technical Specifications

• Material: Bronze
• Nominal Size: 1/2 inches
• End Type: FNPT
• Thread: female NPT x female NPT
• Pressure Rating: 600 PSI WOG
• Saturated Steam Pressure: 150 PSI
• Seat: PTFE
• Softgoods Material: Glass-Filled Reinforced PTFE Seat
• Actuator Type: Handle
• Ball Material: Bronze
• Body Material: Bronze
• Trim Material: Bronze Stem
• Port Type: Full
• Domestic/Import: Domestic
