Dixon Valve BBV25LV 1/4 lockout venting ball pack of 5

Product Description

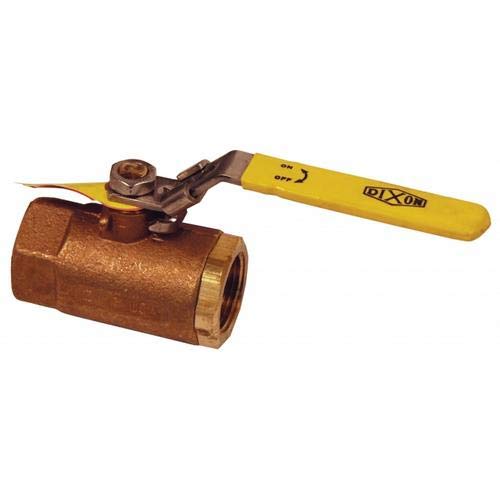

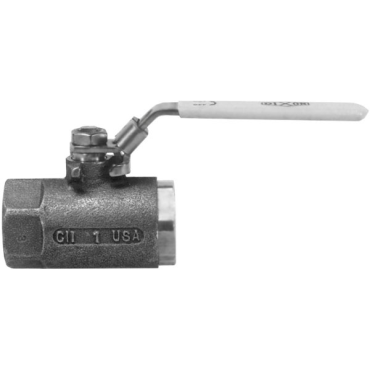

The DIXON VALVE BBV25LV is a 1/4 inch lockout venting ball valve designed for air service only. This full port valve features a bronze body, chromium plated ball, and RTFE seats, ensuring reliable performance. It is engineered to vent downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems, making it suitable for industrial applications requiring safety lockout procedures. The valve has a pressure rating of 0-125 PSI and is constructed with female NPT x female NPT threads.

• Features a blow-out proof stem design for enhanced safety.
• Equipped with an adjustable packing gland for maintenance and sealing.
• Vents downstream air in accordance with OSHA regulation 1910.147 for pneumatic systems.

Product Highlights

Bronze safety vented ball valve with RTFE seats, full port design, and OSHA-compliant venting for pneumatic systems.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: BBV25LV

Technical Specifications

• Pack Quantity: 5
• Size: 1/4 inch
• Body Material: Bronze
• Thread Type: Female NPT x Female NPT
• Seat Material: RTFE
• Port Type: Full
• Pressure Rating: 0-125 PSI
• Orientation: Straight
• Valve Type: Ball
• Application: Air Service Only
• Control Type: Manually Operated
• Flow Direction: 2-Way
• Handle Style: Offset Handle
• Locking Device: Sliding Lock
• Ball Material: Chrome Plated Brass
• Minimum Operating Temperature: 50 °F
• Mounting Type: Inline Threaded
• Maximum Operating Temperature: 200 °F
• Series: BBV-LV
