Dixon Valve B29 Boss Clamp

Product Description

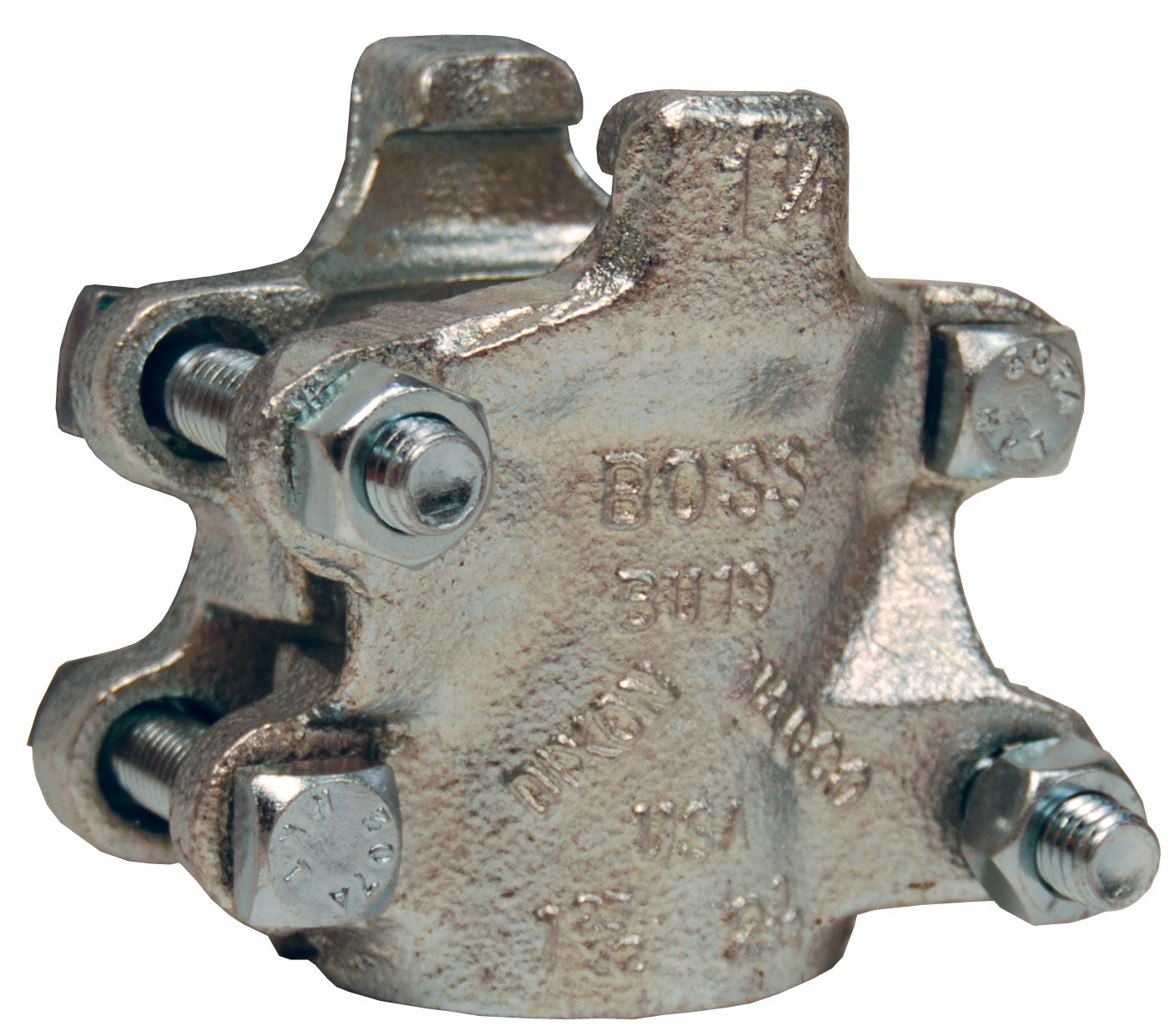

The DIXON VALVE B29 is a robust four-bolt clamp designed specifically for hose securing applications. Made from zinc-plated iron, this clamp provides strength and durability. It includes two gripping fingers and two clamp sections, ensuring a tight grip on hoses. The B29 is rated for a torque of sixty foot-pounds and can handle steam service applications with temperatures up to four hundred fifty degrees Fahrenheit (two hundred thirty-two degrees Celsius).

• 4-bolt design enhances grip strength.
• Constructed from resilient zinc-plated iron.
• Suitable for hoses with specific temperature and pressure requirements.

Product Highlights

This clamp is ideal for securing hoses in a variety of settings, particularly in steam service applications.

Product Information

Standard Information

• Material: Zinc Plated Iron
• Weight: 4.3 lb

Technical Specifications

• Hose ID: 2 inches (50 mm)
• Hose OD From: 2-48/64 inches (69.9 mm)
• Hose OD To: 3-4/64 inches (77.8 mm)
• Torque: 60 ft. lbs.
• Temperature Rating: 450 degrees F (232 degrees C)
• Locking Style: Bolt
