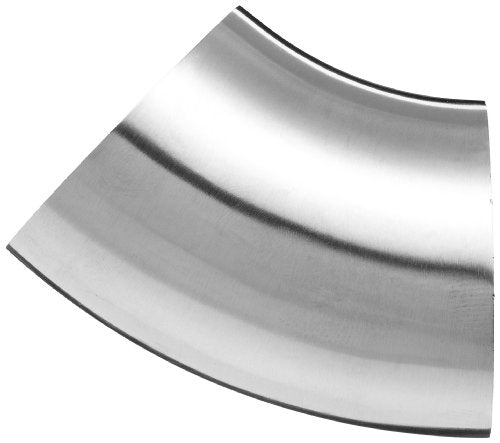

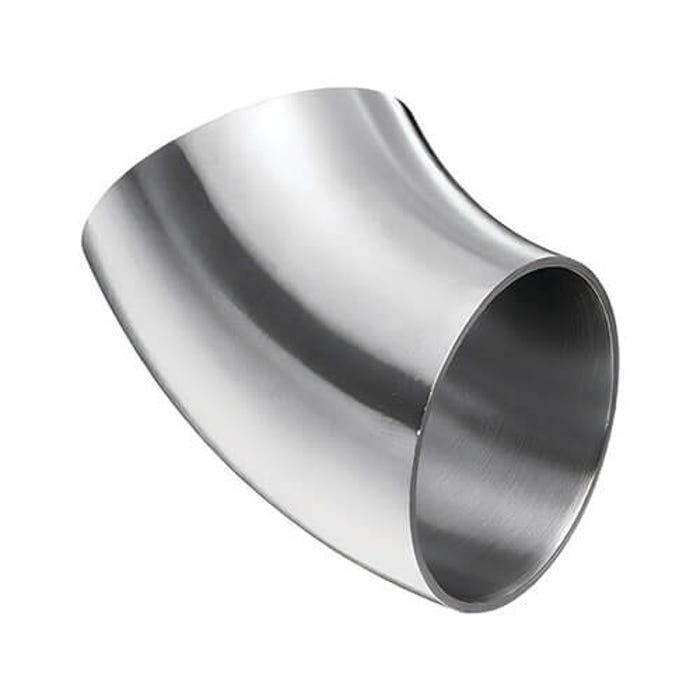

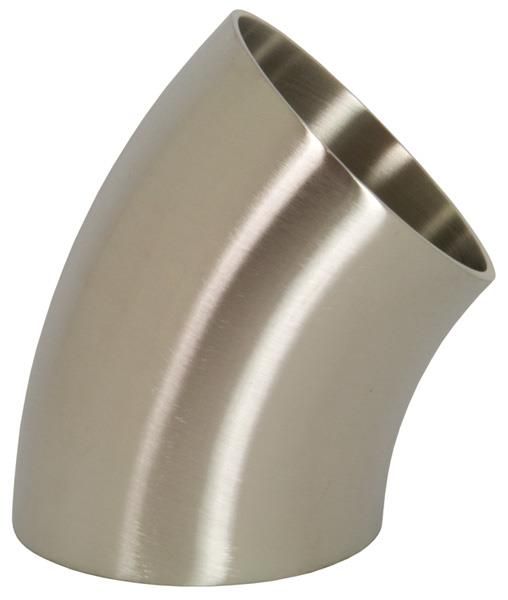

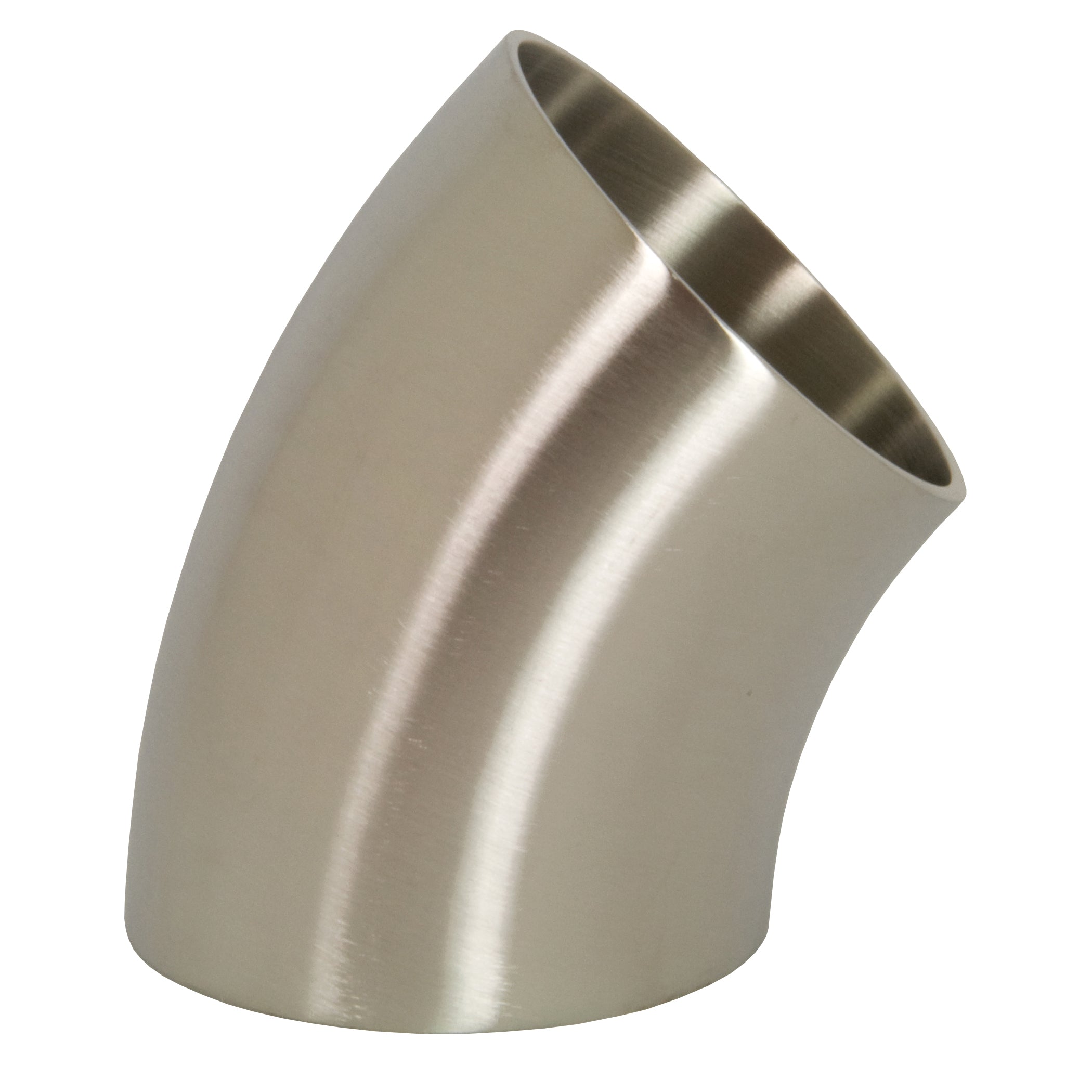

Dixon Valve and Coupling B2WK-R200P 45 Degree Weld Short Elbow (2 inches Tube OD)

Product Description

Dixon Valve and Coupling B2WK-R200P is a 45 degree polished weld short elbow sanitary fitting constructed from 316L stainless steel. The fitting welds to tubing on both ends to change flow direction in sanitary piping. It is specified for 2 in tube outside diameter with a 0.065 in wall thickness, polished internal and external surfaces, meets 3-A Sanitary Standards Number 63-03, and is rated to 250 psi at 70 degree F.

• 316L stainless steel construction with polished sanitary finish on ID and OD
• 45 degree weld short elbow that welds to tubing on both ends for directional flow change
• Designed for 2 in tube outside diameter, 0.065 in wall thickness; maximum operating pressure 250 psi at 70 degree F; meets 3-A Sanitary Standards No. 63-03 (Authorization No. 621)

Product Highlights

Sanitary 45 degree 316L weld elbow for 2 in tube OD with 0.065 in wall, polished finish, 3-A compliant, 250 psi rating at 70 degree F.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: B2WK-R200P
• Country of Origin: United States (Domestic)
