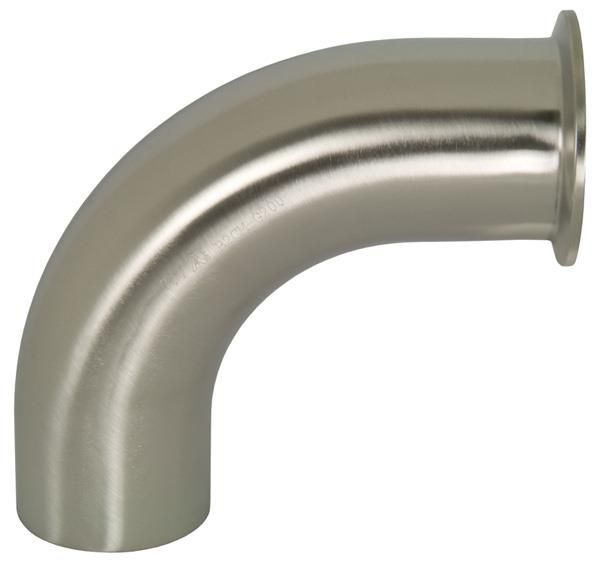

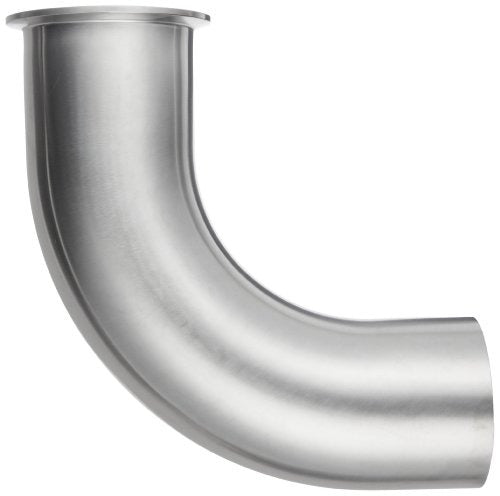

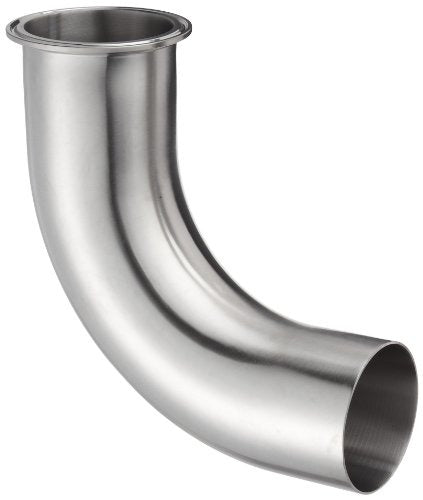

Dixon Valve and Coupling B2CM-G300 90 Degree Clamp x Polished Weld Elbow (3 in Tube OD)

Product Description

Dixon Valve and Coupling B2CM-G300 is a 90 degree sanitary elbow made from 304 stainless steel with a clamp x polished weld configuration for a 3 in tube outside diameter and 0.065 in wall thickness. The clamp end provides removable take-down access while the weld end produces a permanent, leak-resistant joint. The fitting is finished to 3-A sanitary standards and rated to 250 psi at 70 F for food, beverage, and dairy process piping.

• 304 stainless steel construction with polished 3A sanitary finish (ID and OD)
• Clamp x polished weld connections; 90 degree elbow for 3 in tube OD; 0.065 in wall thickness
• Meets 3-A Sanitary Standards No. 63-03 (Authorization 621); maximum operating pressure 250 psi at 70 F

Product Highlights

Sanitary 90° clamp x weld elbow for 3 in tube OD; 304 stainless, polished to 3-A standards.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: B2CM-G300
• Country of Origin: Domestic
