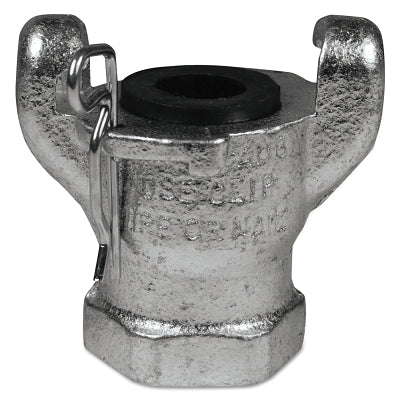

Dixon Valve AM8 Air King 2-Lug NPT End 3/4 Inch F 1-7/16 Inch Dia x 2-1/2 Inch W x 2-1/2 Inch H

Product Description

The Dixon Valve AM8 Air King 2-Lug NPT End is a versatile component designed for pneumatic systems. Featuring a 3/4 inch NPT female thread, it has a diameter of 1-7/16 inches, and dimensions of 2-1/2 inches width and 2-1/2 inches height.

• Built with sturdy iron material
• Includes a rubber washer and safety clip
• Handles up to 150 psi at 70 degrees Fahrenheit

Product Highlights

Ideal for various air hose fittings, this 2-lug NPT end is durable and reliable, suitable for trade professionals working with pneumatic systems.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Product Family: Air King 2-Lug NPT Ends
• Weight: 0.55 lbs

Technical Specifications

• MPN: AM8
• Body Material: Iron
• Connection Type: NPT
• Diameter: 1-7/16 inches
• Female Thread: 3/4 inch (NPT)
• Height: 2-1/2 inches
• Includes: Rubber Washer (AWR4); Safety Clip
• Operating Pressure: 150 psi
• Operating Temperature: -20 degrees Fahrenheit to 160 degrees Fahrenheit
