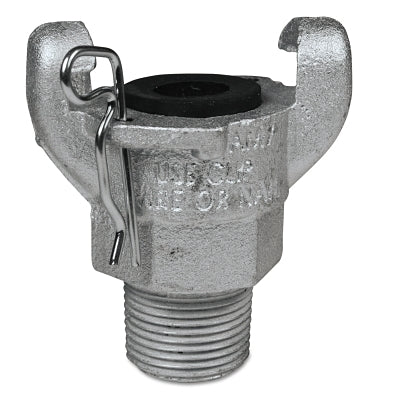

Dixon Valve AM7 Air King 2-Lug NPT End, 3/4 In (NPT) M, Iron

Product Description

The Dixon Valve AM7 Air King 2-Lug NPT End is designed with trade professionals in mind. It features a 3/4 inch NPT male thread connection and is constructed from iron for durability.

• Includes safety clip.
• Supplied with a rubber washer.
• Constructed from iron.

Product Highlights

This fitting is part of the Air King series, offering reliable performance for air hose applications. Ideal for maintaining secure connections in pneumatic systems.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: AM7

Technical Specifications

• Body Material: Iron
• Connection Type: NPT
• Diameter: 1-3/4 inches
• Height: 2-13/16 inches
• Includes: Rubber Washer (AWR4), Safety Clip
• Male Thread: 3/4 inches (NPT)
• Operating Pressure: 150 psi at ambient temperature 70 degrees Fahrenheit
• Operating Temperature Range: -20 to 160 degrees Fahrenheit
• Quantity: 1 EA
• Thread Size: 3/4 inches
• Type: 2-Lug Male NPT End
• Width: 2-1/2 inches
