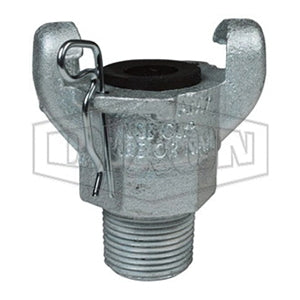

Dixon AM7 Air King Zinc-Plated Malleable Iron 2-Lug Universal Coupling 3/4 in MNPT

Product Description

The Dixon AM7 is an Air King zinc-plated malleable iron 2-lug universal coupling. It features a connection size of three-fourths inches and is designed for use with MNPT fittings.

• Includes safety clip and AWR4 rubber washer
• Pressure rating of 150 psi at seventy degrees Fahrenheit
• Meets A-A-59553 specifications

Product Highlights

This coupling provides reliable performance and secure connections. It is suitable for various applications, particularly those requiring Air King ferrules.

Product Information

Standard Information

• Brand: Dixon
• Sub Brand: Air King

Technical Specifications

• Connection Size: Three-fourths inches
• Connection Type: MNPT
• Material: Malleable iron
• Finish: Zinc-plated
• Inside Diameter: One and three-eighths inches
• Outside Diameter: Two and one-half inches
• Length: Two and thirteen-sixteenths inches
• Pressure Rating: 150 psi
• Temperature Rating: Seventy degrees Fahrenheit ambient
• Type: 2-Lug
