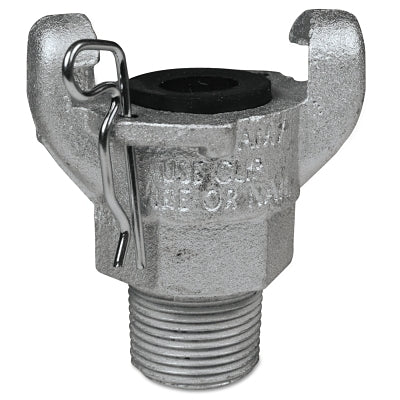

Dixon Valve AM2 Air King 2-Lug NPT End 1/2 in (NPT) 1-1/8 in dia x 2-1/2 in W x 2-11/16 in H

Product Description

The Dixon Valve AM2 is an air hose fitting designed for secure connections. It features a two-lug male NPT end with a nominal size of one-half inch. The fitting has a diameter of one and one-eighth inches and dimensions of two and one-half inches in width and two and two-thirds inches in height.

• Includes safety clip for secure attachment.
• Comes with a rubber washer (AWR4) to ensure a tight seal.
• Constructed from iron for durability and strength under pressure.

Product Highlights

This air hose fitting is suitable for various applications requiring reliable and durable connections in pneumatic systems.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Category: Air Hose Fittings

Technical Specifications

• Body Material: Iron
• Connection Type: NPT
• Nominal Diameter: 1-1/8 inches
• Male Thread Size: 1/2 inch (NPT)
• Operating Pressure Max: 150 psi
• Operating Temperature Max: 160 degrees F
• Operating Temperature Min: -20 degrees F
• Includes: Rubber Washer (AWR4), Safety Clip
