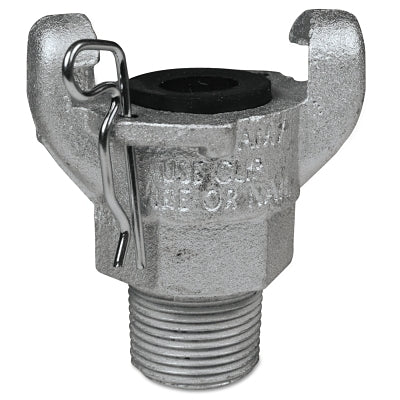

Dixon Valve AM12 Air King 1 Inch NPT End with Rubber Washer and Safety Clip

Product Description

The Dixon Valve AM12 Air King 2-Lug NPT End is designed for use in pneumatic applications. It features a 1 inch male NPT connection and is constructed from durable iron. This fitting includes a rubber washer and a safety clip to ensure secure and reliable connections.

• 1 inch male NPT connection
• Iron construction
• Includes rubber washer and safety clip

Product Highlights

The Dixon Valve AM12 Air King fitting is ideal for use in compressed air systems and allows for quick and secure connections. The iron construction ensures durability and longevity while operating under the maximum pressure of 150 psi.

Product Information

Standard Information

• Manufacturer: Dixon Valve
• Category: Air Hose Fittings
• Family: Dixon Valve Air King 2-Lug NPT Ends

Technical Specifications

• Body Material: Iron
• Connection Type: NPT
• Dia. [Nom]: 1-1/2 inches
• Height [Nom]: 2-7/8 inches
• Includes: Rubber Washer (AWR4); Safety Clip
• Male Thread: 1 inch (NPT)
• Operating Pressure [Max]: 150 psi
• Operating Temp. [Max]: 160 degrees Fahrenheit
• Operating Temp. [Min]: -20 degrees Fahrenheit
• Quantity: 1 EA/EA
• Thread Size [Nom]: 1 inch
• Type: 2-Lug Male NPT End
• Width [Nom]: 2-1/2 inches
