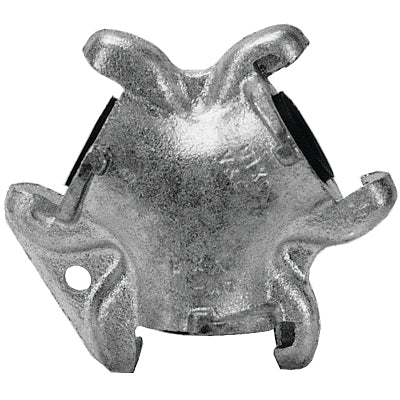

Dixon Valve AM10 Air King 2-Lug Triple Connection, 5/16 in dia x 4-9/32 in W x 3-3/4 in H, Brass (Global Investment Cast)

Product Description

The Dixon Valve AM10 Air King 2-Lug Triple Connection is a versatile solution for your pneumatic needs. Designed by Dixon Valve, this fitting features a 5/16 inch diameter and measures 4-9/32 inches wide by 3-3/4 inches high.

• Brass construction (Global Investment Cast)
• Pressure rating of 150 psi
• Includes safety clip and rubber washer (AWR4)

Product Highlights

This Air King 2-Lug fitting offers a reliable connection for air hose applications. Its brass construction ensures durability and efficient performance. Ideal for various pneumatic systems.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: AM10
• Type: 2-Lug Triple Connection

Technical Specifications

• Body Material: Brass (Global Investment Cast)
• Diameter: 5/16 inch
• Height: 3-3/4 inches
• Width: 4-9/32 inches
• Operating Pressure Max: 150 psi
• Operating Temperature Max: 160 degrees F
• Operating Temperature Min: -20 degrees F
• Includes: (2) Rubber Washers (AWR4), (2) Safety Clips
