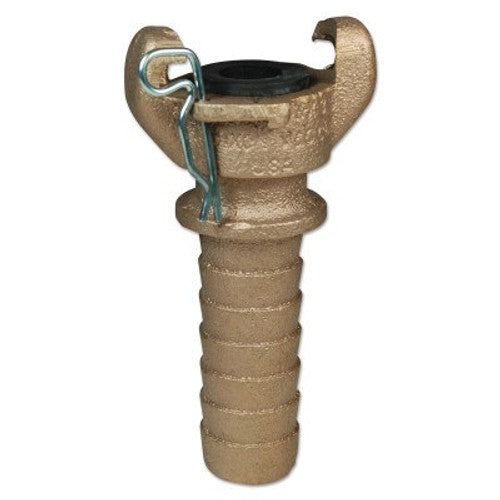

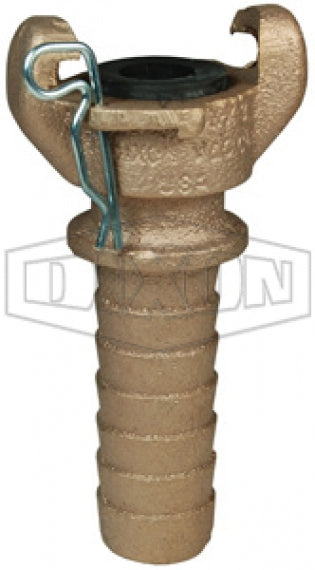

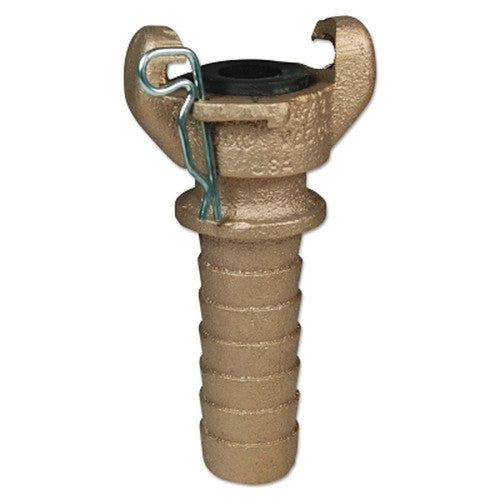

Dixon Valve AB6 Air King Universal Coupling 3/4in

Product Description

The Dixon Valve AB6 Air King universal coupling is a durable fitting designed for air and water service applications. This coupling features a brass construction and connects using a three-fourths inch male barb or hose end with a two-lug Chicago connection.

• Includes a rubber washer for sealing.
• Comes with a safety clip for secure connection.
• Suitable for various air and water transfer tasks.

Product Highlights

The Dixon Valve AB6 ensures reliable connections in plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: AB6

Technical Specifications

• Material: Brass
• Seal Material: Rubber
• Size: Three-fourths inch
• Pressure Rating: 150 PSI (1 MPa)
• Operating Pressure Max: 110 PSI
• Connection Type: Male/Female
• Ends Configuration: Three-fourths inch Hose Barb, 2-Lug Chicago
• Weight: 0.53 lb
• Height Nominal: Four and one-eighth inches
• Width Nominal: Two and one-half inches
• Separation Force: 350 lbs
