Dixon Valve 550 King Clamp

Product Description

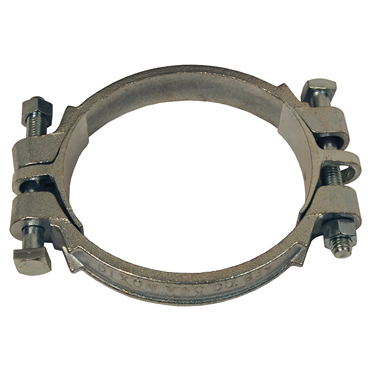

The DIXON VALVE 550 King Clamp is designed for various clamping applications. The double bolt clamp features saddles and an inner surface with dual gripping ridges. Bolt lugs are reinforced to prevent bending out of alignment. It is suitable for use with a standard socket wrench.

• Inner surface has dual gripping ridges
• Bolt lugs are reinforced to prevent bending out of alignment
• 300 Series Stainless Steel band and bolt construction

Product Highlights

The DIXON VALVE King Clamp is ideal for providing a secure and reliable connection in demanding environments.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 550
• Country of Origin: US

Technical Specifications

• Material: Plated Iron
• Torque: 60 ft. lbs.
• Hose OD To: 5-16/64"
• Hose OD From: 4-32/64"
• Saddles: w/Saddles
• Locking Type: Nut & Bolt
• Bolt/Screw Type: Hex Head
• Hose O.D. Range: 4 1/2 to 5 1/4
• Type: Double Bolt
• Component Material: 300 Series Stainless Steel bolt
• Style: Style STBC
• Width: 3/4"
• Thickness: .025"
