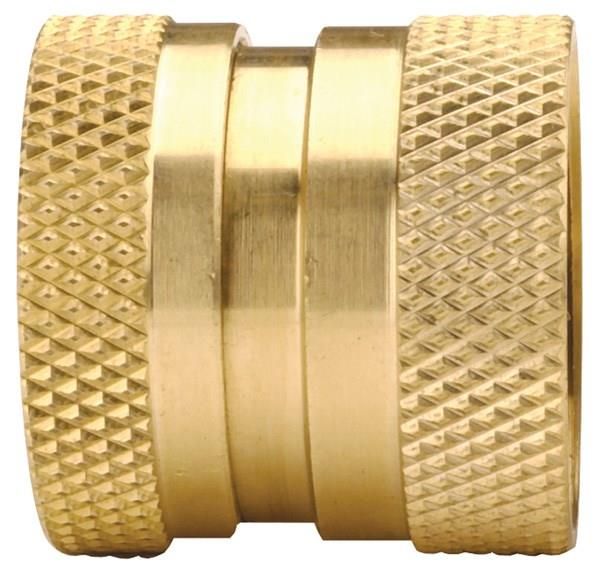

Dixon Valve 500QCFV Garden Hose Quick Connect Female Coupler (3/4-inch Female GHT)

Product Description

Dixon Valve 500QCFV is a brass garden hose quick-connect female coupler with an internal shut-off valve. It features a sleeve-lock socket and push-pull ring for quick connection and disconnection and uses 3/4-inch female GHT threads. The coupler is rated to 150 psi at 70 °F with a maximum temperature of 140 °F; nominal dimensions are 1.16 x 1.16 x 1.34 inches and weight 0.15 lb. It is designed for frequent hose access and pairs with the Dixon 500QCM male plug.

• Internal shut-off valve and sleeve-lock socket enable water shutoff when disconnected and secure coupling
• Brass construction with 3/4-inch female GHT threads; rated 150 psi (max) and 140 °F (max)
• Nominal dimensions 1.16 x 1.16 x 1.34 inches, weight 0.15 lb; compatible with Dixon 500QCM male plug

Product Highlights

Brass valved quick-connect female coupler with internal shut-off, sleeve-lock socket, 3/4-inch female GHT, 150 psi rating

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 500QCFV
• Country of Origin: Taiwan

Technical Specifications

• Brand: Dixon Valve
• MPN: 500QCFV
• Material: Brass
• Type: Quick-Connect Female Coupler, Valved
• Threads: 3/4" Female GHT
• Connection: 3/4-inch Female GHT
• Style: Valved; sleeve-lock socket; internal shut-off valve
• Maximum Operating Pressure: 150 psi at 70 °F (21 °C)
• Maximum Operating Temperature: 140 °F (60 °C)
• Used With: Dixon 500QCM male plug
• Dimensions (H x W x L): 1.16 x 1.16 x 1.34 inches
• Length (Nominal): 1.34 in
• Weight: 0.15 lb
• Country of Origin: TW
• Contains Lead: Yes
