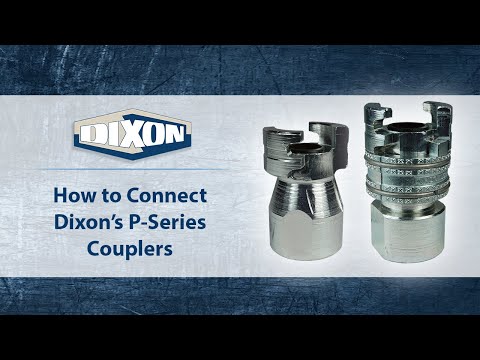

Dixon Valve 4PS6 Dual-Lock P-Series Thor Interchange Coupler

Product Description

The Dixon Valve 4PS6 is a Dual-Lock P-Series Thor Interchange coupler suitable for various applications. It features a hose barb connection and quick disconnect functionality. This coupler is built with nitrile seals, and a stainless steel retaining ring and spring for durability.

• Connection type: Quick Disconnect and Hose Barb
• Temperature range: -40 degrees Fahrenheit to 250 degrees Fahrenheit
• Interchanges with National A-type couplings

Product Highlights

This coupler is ideal for general purpose air handling, water, and nitrogen lines.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: 4PS6

Technical Specifications

• Series: P
• Sub Brand: Dual-Lock
• Connection Type 1: Quick Disconnect
• Connection Size 1: 1/2 inches
• Connection Type 2: Hose Barb
• Connection Size 2: 3/4 inches
• Body Size: 1/2
• Hose ID: 3/4
• Material: Steel
• Finish: Plated
• Maximum Operating Pressure: 300 PSI (20 bar)
• Temperature Range: -40 degrees Fahrenheit to 250 degrees Fahrenheit
• Maximum OD: 1.55 inches (39.4 mm)
• Length: 3.95 inches (100.3 mm)
• Weight: 0.52 lb
• Burst Pressure: 2600 PSI (180 bar)
• Shape: Coupler
