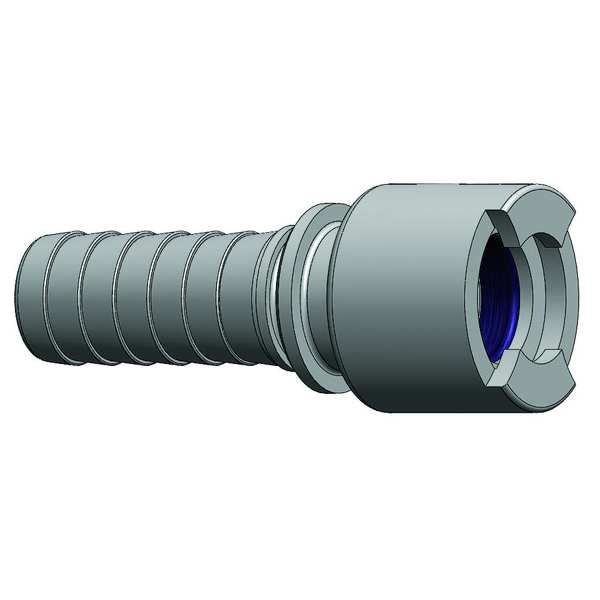

Dixon Valve 4NS6 Dix-Lock N-Series Interchange Female Head Coupler

Product Description

The Dixon Valve 4NS6 is a Dix-Lock N-Series interchange female head coupler with a standard hose barb. This coupler is built with machined components and Nitrile seals. It meets MIL-C-3486 and A-A-50431A standards for performance and reliability. The design allows for interchangeability with various systems, including Bowes 51000-Series and National Series 'B'.

• Body Size: 1/2 inches
• Hose ID: 3/4 inches
• Interchange type: Bowes Interchange Bayonet Style

Product Highlights

This coupler is suitable for a variety of applications where secure and reliable connections are required.

Product Information

Standard Information

• Material: Plated Steel
• Weight: 0.57 lb

Technical Specifications

• Body Size: 1/2 inches
• Hose ID: 3/4 inches
• Pressure Rating: 300 PSI at ambient temperature 70°F (21°C)
• Temperature Range: -40°F to 250°F
• Length: 3.37 inches
• Maximum OD: 1.33 inches
• Conformance: MIL-C-3486 and A-A-50431A
• Rated Pressure for Connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working, 11,000 PSI (755 bar) Burst
