Dixon Valve 4NM4 Dixon Valve 4NM4 Power (1/2 inch) Replacement MPN

Product Description

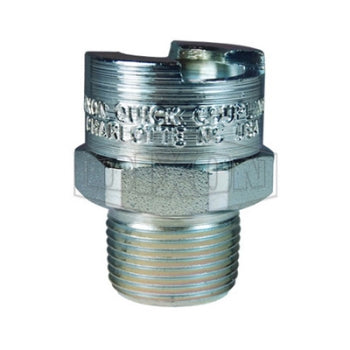

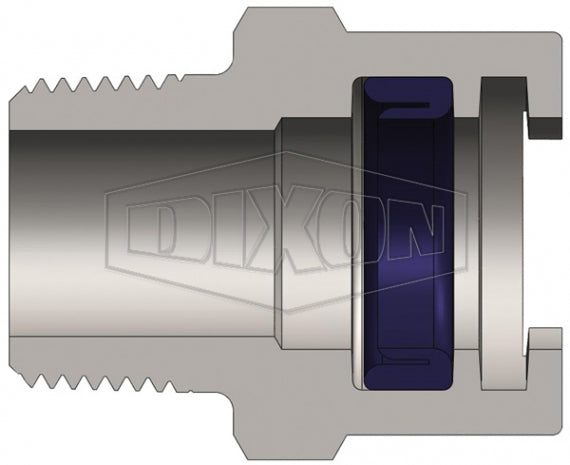

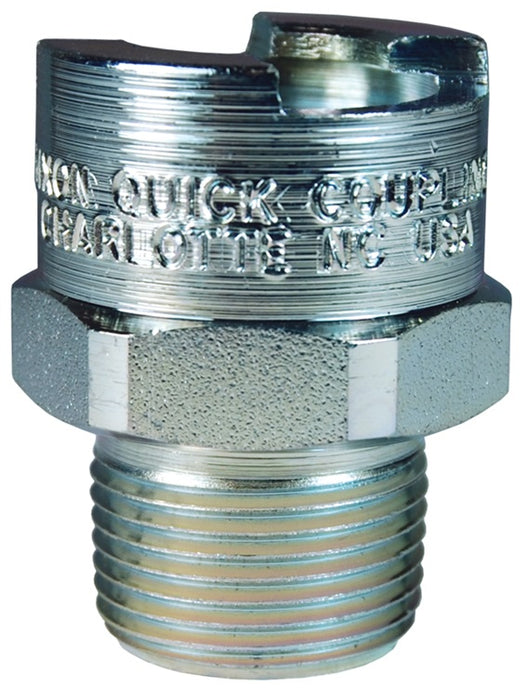

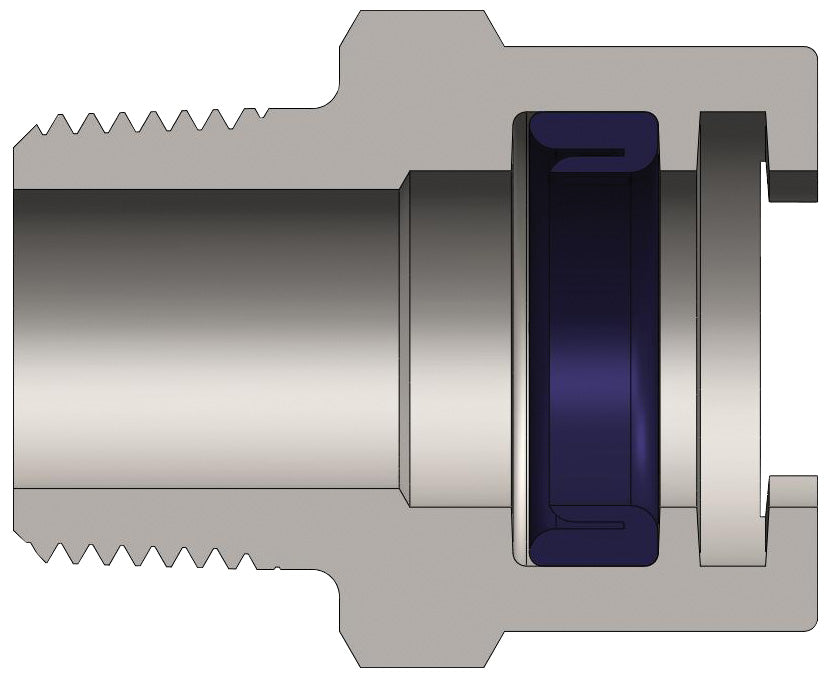

The Dixon Valve 4NM4 is a Dix-Lock N-Series interchange coupler. This coupling includes a female quick disconnect head and male threaded end. It is constructed from steel and comes with trivalent chrome plating. The 4NM4 coupler features nitrile (NBR-N) seals for durable performance. It is rated for a maximum pressure of 500 PSI and is compliant with MIL-C-3486 and A-A-50431A standards. This coupler operates efficiently in temperatures ranging from negative forty degrees Fahrenheit to positive two hundred fifty degrees Fahrenheit.

• Body size: 1/2 inch
• Connection Types: Quick Disconnect and NPTF
• Interchangeable with Bowes 51000-Series and Campbell Single-Lock

Product Highlights

The Dixon Valve 4NM4 is a reliable choice for various applications requiring quick connect and disconnect capabilities.

Product Information

Standard Information

• Brand: Dixon Valve
• Series: N-Series

Technical Specifications

• Body Size: 1/2 inch
• Shape: Straight
• Ends Configuration: 1/2 inch Male NPTF, 1/2 inch Female MIL-C-3486 QD Interchange
• Material: Steel
• Seal Material: Buna-N/Nitrile Rubber
• Interchangeability: Compatible with Bowes Interchange Bayonet Style
• Thread Size: 1/2 inch
• Hex Size: 1-3/8 inches
• Length: 1.85 inches
• Maximum OD: 1.50 inches
• Pressure Rating: 500 PSI
• Temperature Rating: -40 to 250 degrees Fahrenheit
• Weight: 0.3 lb
• Finish: Trivalent Chrome-Plated
