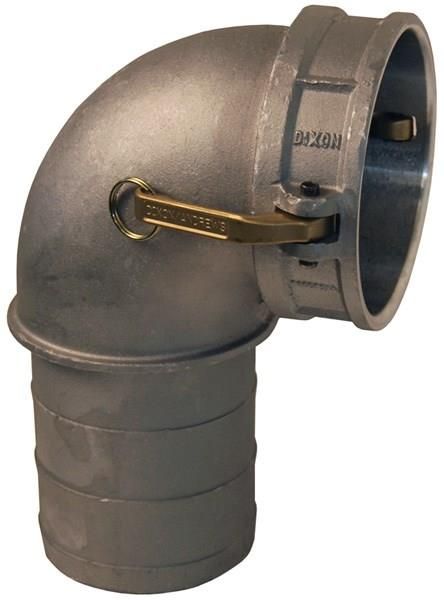

Dixon Valve 300C-90AL Elbow Cplr

Product Description

The DIXON VALVE 300C-90AL Elbow Cplr is designed for use with liquids. To make a connection, simply slide the adapter into the coupler and press the cam levers down. Uncoupling is quick and simple by lifting the cam arms and removing the adapter. It interchanges with all product produced to Commercial Item Description A-A-59326D.

• Cam & Groove Coupler
• 90° Elbow
• Type C

Product Highlights

This aluminum cam and groove coupler features a 90° elbow and is easy to connect and disconnect.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 300C-90AL

Technical Specifications

• Shape (Orientation): 90 Degree
• Cam Type: Type C
• Ends Configuration: 3in Female Cam & Groove, 3in Hose Barb
• Material(s): Aluminum
• Seal Material(s): Buna-N/Nitrile Rubber
• Maximum Operating Pressure: 125 PSI
• Size: 3"
• Material: 356T6 Aluminum
• Seal: Nitrile Rubber
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• MPN: 300C-90AL
• Product Type: Simple product
• Product: Elbows & Bends
• Angle: 90°
• Application: Designed for use with liquids, consult Anderson Process for specific recommendations.
• Specifications: Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
• Style: Part C
