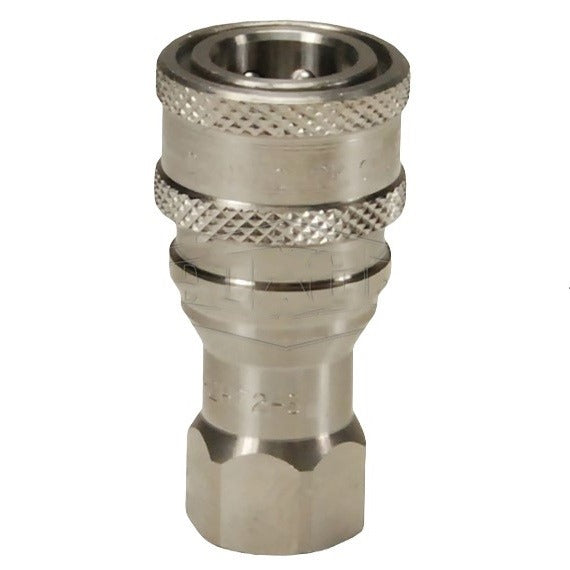

Dixon Valve 2HF2-SS-LS H-Series ISO-B coupler 1/4 inches

Product Description

Dixon Valve 2HF2-SS-LS is a H-Series 1/4" ISO-B quick-disconnect coupler constructed from 316 stainless steel. It is a poppet-style female threaded coupler with a lock sleeve that meets ISO 7241 Series B dimensional requirements and uses redundant dual O-ring sealing with nitrile seals. Rated for a maximum operating pressure of 3500 PSI and a burst pressure of 33000 PSI, its operating temperature range is -40°F to 250°F (-40°C to 121°C).

• 316 stainless steel construction; machined from solid bar stock; maximum operating pressure 3500 PSI, burst pressure 33000 PSI.
• Poppet-style shut-off with lock sleeve; redundant dual O-ring sealing using nitrile seals; temperature range -40°F to 250°F (-40°C to 121°C).
• 1/4" size with female NPTF thread (1/4"-18); meets ISO 7241 Series B; interchangeable with Parker 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster HNV, Aeroquip/Eaton FD45, Stucchi IRB/IRBO/IRBX.

Product Highlights

1/4" ISO-B coupler, 316 stainless steel, poppet valve with lock sleeve, redundant nitrile O-rings, 3500 PSI rating.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 2HF2-SS-LS

Technical Specifications

• Brand: Dixon Valve
• Manufacturer Part Number: 2HF2-SS-LS
• Model: H-Series
• Type: ISO-B Coupler (Quick Disconnect)
• Size: 1/4"
• Material: 316 Stainless Steel
• Coupler Style: Poppet-style female threaded coupler with lock sleeve
• Sealing: Redundant dual O-ring sealing
• Seals Material: Nitrile (NBR) seals
• Thread Type: Female NPTF
• Thread Size: 1/4"-18
• Maximum Operating Pressure: 3500 PSI (240 bar)
• Burst Pressure: 33000 PSI (2200 bar)
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Maximum Outer Diameter: 1.12" (28.4 mm)
• Length: 2.26" (57.4 mm)
• Hex Size: 3/4"
• Weight: 0.27 lb
• Compatibility: Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
• Standards: Meets ISO 7241 Series B dimensional requirements
