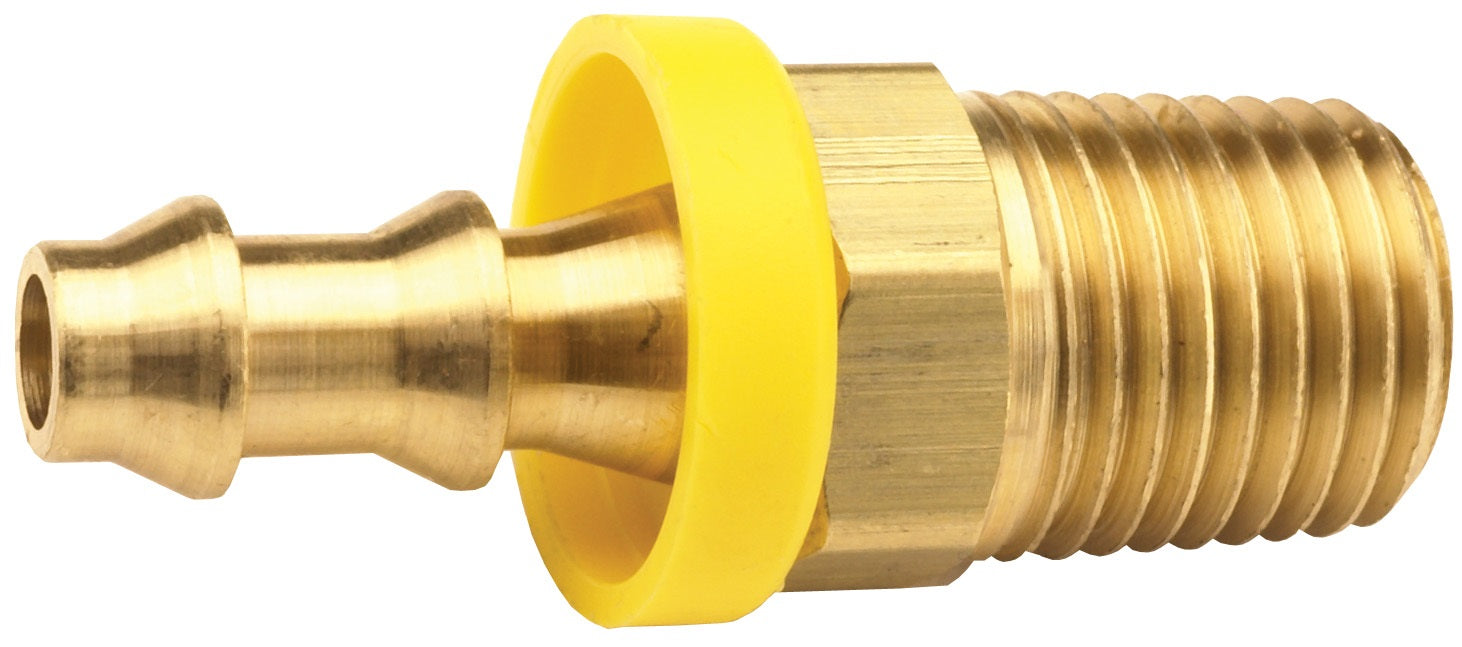

Dixon Valve 2721616C Male NPT x Push-on Hose Barb 1 inch

Product Description

The Dixon Valve 2721616C is a male NPT x push-on hose barb suitable for Lok-On hose systems. This fitting is designed with dryseal construction, ensuring a secure connection without the requirement of hose clamps or ferrules.

• Dryseal construction for enhanced reliability.
• Capped to provide a secure fit.
• No additional hardware needed for installation.

Product Highlights

This hose barb fitting is ideal for various applications, operating effectively within a temperature range of negative forty degrees Fahrenheit to one hundred fifty degrees Fahrenheit. It has a pressure rating of three hundred fifty PSI, making it a reliable choice for demanding tasks.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: 2721616C

Technical Specifications

• Material: Brass
• Component Material: Yellow Plastic Cap
• Male Thread: NPTF
• Temperature Range: -40°F to 150°F
• Length: 3.16 inches
• Hose ID: 1 inch
• Hex: 1-3/8 inches
• Male Thread Size: 1-11.5 inches
• Pressure Rating: 350 PSI
• Construction: Dryseal
• Capped: Yes
• Number of Barbs: 3
• Barb Length: 1.50 inches
• Series: 272 Series
• Shape (Orientation): Straight
• Ends Configuration: 1 inch Push-On Hose Barb, 1 inch Male NPTF
• Fitting Material: Brass
• Cap Material: Plastic
