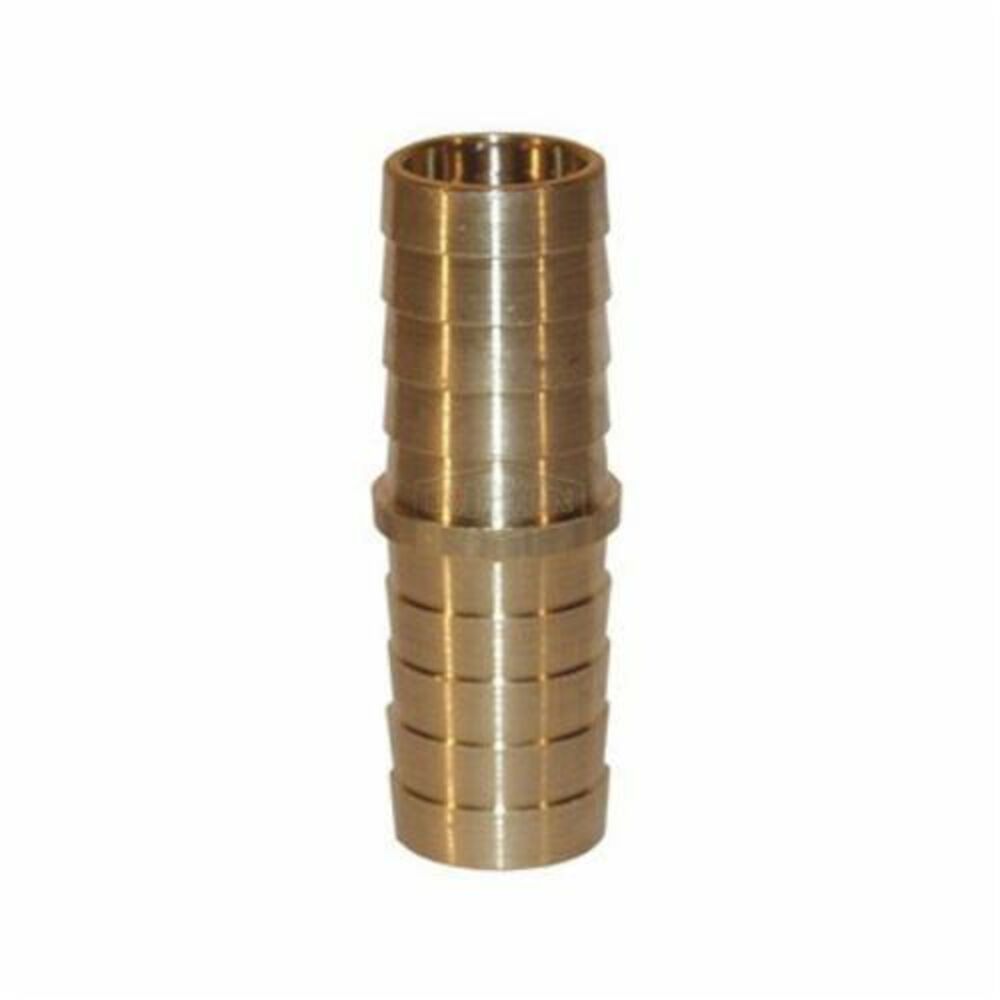

Dixon Valve 1780808C Hose Mender 1/2 in

Product Description

The Dixon Valve 1780808C is a hose mender that effectively repairs hoses with a straightforward design. This coupling features hose barb ends on both sides, allowing for easy connection. It is made of brass, which ensures corrosion resistance and flexibility.

• Nominal size of 1/2 inch
• Constructed from durable brass material
• Overall length of 2-1/16 inches

Product Highlights

The Dixon Valve hose mender is ideal for use with hose clamps or crimped ferrules. It is designed to provide a reliable connection in various applications.

Product Information

Standard Information

• Brand: Dixon
• MPN: 1780808C

Technical Specifications

• Fitting/Connector Type: Coupling
• Nominal Size: 1/2 inch
• End Style: Hose Barb
• Material: Brass
• Barb Length: 0.97 inches
• Dimensions: 23/32 inch diameter
• Length: 2-1/16 inches
• Number of Barbs: 4
• Temperature Rating: -40 to 160 degrees F
• Application: Use with hose clamps or crimped ferrules
• Shape (Orientation): Straight
• Ends Configuration: 1/2 inch hose barb on both ends
• Construction: Brass
• Lead-Free Brass: NSF/ANSI 61 certified, less than or equal to 0.25% lead, Alloy C2745
• Weight: 0.065 lbs
• Domestic/Import: Domestic
