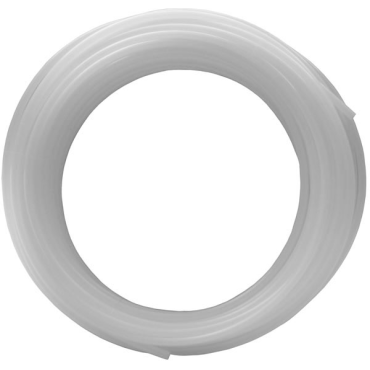

Dixon Valve 1612 Polyethylene Tubing 100 ft Roll

Product Description

Dixon Valve 1612 is polyethylene (LLDPE) tubing supplied in a 100 ft roll with a 1/2 in outside diameter, 0.375 in inside diameter and 0.062 in wall thickness. It is NSF61 certified and complies with FDA 21 CFR 177.1520 for potable water and food-contact applications. Rated for 125 PSI at 75°F and usable from -50°F to 140°F, it is flexible, UV stabilized and designed for use with push-in fittings and inserts.

• 1/2 in outside diameter, 0.375 in inside diameter, 0.062 in wall thickness; 100 ft roll
• NSF 61 certified and compliant with FDA 21 CFR 177.1520 for potable water and food-contact applications
• Working pressure 125 PSI at 75°F; temperature range -50°F to 140°F; UV stabilized, flexible LLDPE construction

Product Highlights

100 ft LLDPE tubing, 1/2 in OD, 0.375 in ID, 0.062 in wall; NSF61 and FDA compliant; 125 PSI working pressure; -50°F to 140°F range

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: 1612

Technical Specifications

• Brand: Dixon Valve
• MPN: 1612
• Material: Polyethylene (LLDPE)
• Tube Outer Diameter: 0.50 in (1/2 in)
• Tube Inner Diameter: 0.375 in
• Wall Thickness: 0.062 in
• Length: 100 ft roll
• Weight: 3.55 lb
• Working Pressure: 125 PSI at 75°F (24°C)
• Temperature Range: -50°F to 140°F (-46°C to 60°C)
• Construction / Finish: Flexible, lightweight LLDPE; glossy finish; UV stabilized
• Applications / Use: Designed for FDA applications; potable water; compatible with push-in fittings and plastic or metal inserts with outer sleeve, ferrule, or clamps
• Certifications / Compliance: NSF 61; FDA 21 CFR 177.1520 (food contact)
