Dixon Valve 1020404C Male NPTF x Hose Barb

Product Description

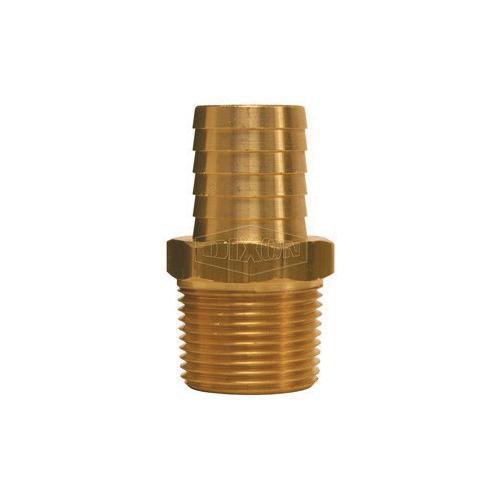

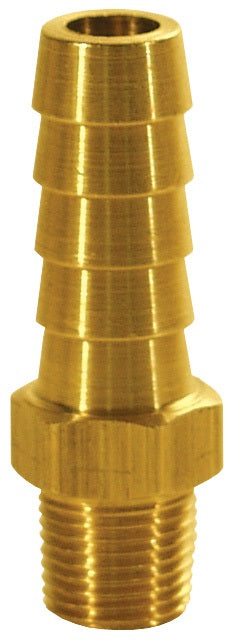

The Dixon Valve 1020404C is a brass hose barb fitting featuring a quarter-inch male NPTF thread. This fitting has a barbed end that allows for a strong connection with hoses, which can be secured with hose clamps or crimped ferrules. Made from 360 CDA brass, the valve is resistant to corrosion and provides ductility.

• Features a quarter-inch male NPTF thread.
• Four barbs with a barb length of 0.97 inches.
• Hex size of 9/16 inches.

Product Highlights

This fitting is suitable for standard hose applications.

Product Information

Standard Information

• Product Type: Hose Barb
• Series: 102 Series

Technical Specifications

• Material: Brass
• Construction: 360 CDA Brass
• End Style: MNPT x Hose Barb
• Fitting Connector Type: Adapter
• Shape (Orientation): Straight
• Male Thread: NPTF
• Nominal Size: Quarter inch
• Hose ID: Quarter inch
• Number of Barbs: 4
• Length: 1.76 inches
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 160 degrees Fahrenheit
• Weight: 0.045 lbs
