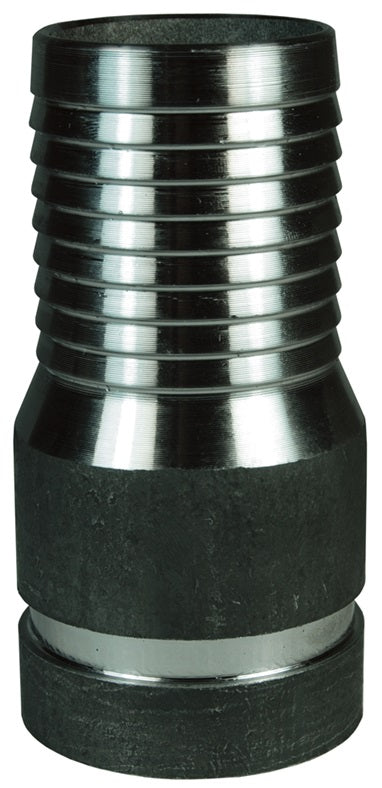

Dixon STV35 King Combination Nipple 3 in x 6 in L Grooved

Product Description

The DIXON STV35 King Combination Nipple is recommended for low-pressure discharge and suction service for compatible liquids. It features a grooved end and is not recommended for steam or compressible products such as air or nitrogen. Crimp sleeves are available and recommended for reliable assemblies.

• Recommended for low-pressure discharge and suction service for compatible liquids
• Not recommended for steam
• Crimp sleeves are available and recommended for reliable assemblies

Product Highlights

The King Combination Nipple is designed for use in discharge and suction applications with compatible liquids.

Product Information

Standard Information

• Brand: DIXON
• Manufacturer Part Number: STV35
• Country of Origin: South Korea

Technical Specifications

• Country of Origin (subject to change): Unknown
• Size: 3"
• Material: Carbon Steel
• Shape (Orientation): Straight
• Ends Configuration: 3in Grooved End, 3in Hose Barb
• MPN: STV35
• Country of Origin: South Korea
• Length (in): 6
• Width (in): 3.0312
• Height (in): 3.5
• Nominal Size: 3 in
• Finish: Unplated
• Diameter: 3-1/32 x 3-1/2 in
• Package Quantity: 1/Each
• Connection Size 1: 3 in
• Connection Size 2: 3 in
• Connection Type 1: Hose Barb
• Connection Type 2: Grooved
• Length: 6 in
• Material Construction: Steel
• Shape: Nipple
• Sub Brand: King
• Temperature Rating: 70 deg F
