Dixon HSCE300 hsc-series spring check valve 3 inches replacement b46

Brand: DIXON
SKU: HSCE300
Availability: Out Of Stock
$548.45
$548.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

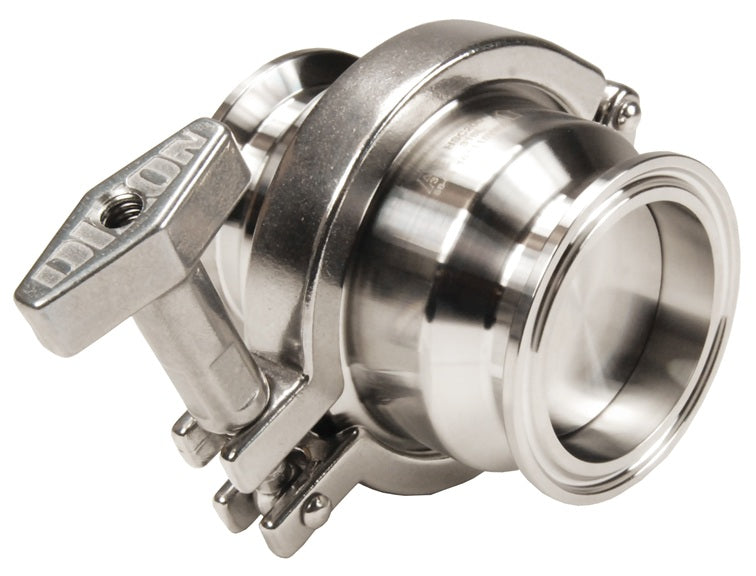

The DIXON HSCE300 HSC-Series Spring Check Valve is designed to prevent reverse flow, with a concentric design ideal for vertical applications. Constructed from 316L stainless steel with an EPDM elastomer, it ensures durability and reliability. It has a maximum operating pressure of 145 PSI and a temperature range of 15°F to 200°F.

  • Single piece upper body spider design
  • Machined from solid bar
  • Standard O-ring and gasket seal design

Product Highlights

This spring check valve can be serviced in the field without special tools and features a sanitary polish 32 Ra finish.

Product Information

Standard Information

  • Brand: DIXON
  • Manufacturer Part Number: HSCE300
Technical Specifications
Maximum Operating Pressure
145 PSI
Elastomer
EPDM
Size
3"
Material
316L Stainless Steel
Style
Clamp Connection
Temperature Range
15 0F to 200 0F (-9.4 0C to 93 0C)
Valve Type
Check Valve
Outlet Connection Size
3 Inches
Shape (Orientation)
Straight
Ends Configuration
3in Sanitary Clamp End, 3in Sanitary Clamp End, Some Ends Match
Body Material
316L Stainless Steel
End Style
Clamp
Inlet to Outlet Length
3.4 in
Nominal Size
3 In
Pressure Rating
145 psi
Series
HSC
Softgoods Material
EPDM Elastomer/FKM/EPDM Gasket/O-Ring
Temperature Rating
15 to 200 deg F
Trim Material
316L Stainless Steel
Type
Concentric
MODEL
HSCE300
BRAND
Dixon Sanitary Fittings
SKU
5818469
Applications
Spring check valves are designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Available Options
Various end connections available
