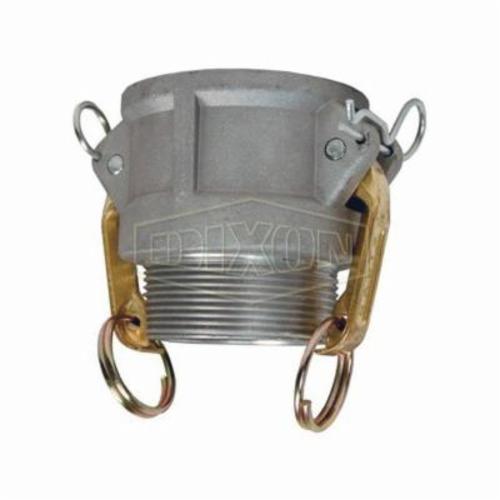

Dixon G400-B-AL 4 inch Aluminum Cam and Groove Type B Coupler

Product Description

The Dixon G400-B-AL is a four-inch Type B cam and groove coupler made for liquids. It is constructed from A380 permanent mold aluminum with a stainless steel handle and Buna seals. The design includes a female coupler x MNPT end style, with measurements of ten and fifteen-sixteenths inches open and six and nine-thirty-seconds inches closed across the cam arm. The coupler has a length of three and thirteen-sixteenths inches. It meets A-A-59326D standards for interchangeability with other products. The coupler is rated for a pressure of one hundred psi based on the use of compatible Dixon fittings at a temperature of seventy degrees Fahrenheit with a standard seal installed.

• Made from A380 permanent mold aluminum.
• Features Buna seals for compatibility with liquid applications.
• Interchangeable with products adhering to A-A-59326D standards.

Product Highlights

This coupler offers a reliable connection for liquid systems, ensuring durability and performance.

Product Information

Standard Information

• Part Number: G400-B-AL
• Type: Type B

Technical Specifications

• Unit Count Type: ea
• Unit Count: 1
• Brand: Dixon
• Weight: 1.99 lbs
• Fitting/Connector Type: Coupling
• Nominal Size: 4 in
• End Style: Female Coupler x MNPT
• Material: Aluminum
• Length: 3-13/16 in
• Manufacturer Name: Dixon Valve & Coupling
• Pressure Rating: 100 psi
• Application: Designed for use with liquids
• Warranty: Limited
• Domestic/Import: Domestic
• Country of Origin: US
• Standards and Approvals: Designed to interchange with A-A-59326D
• Seal: Nitrile Rubber
