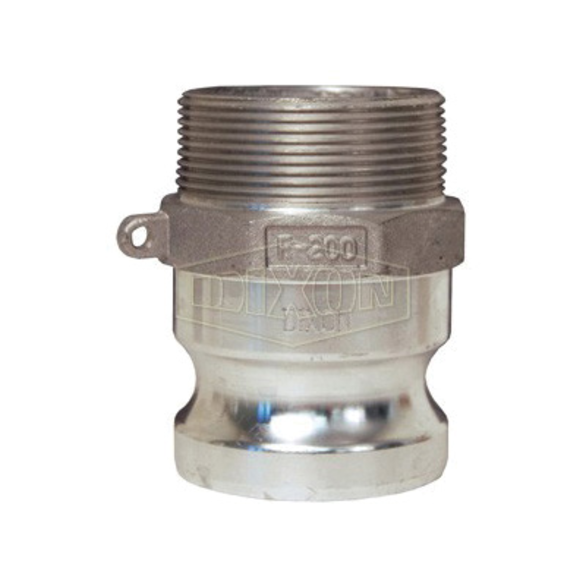

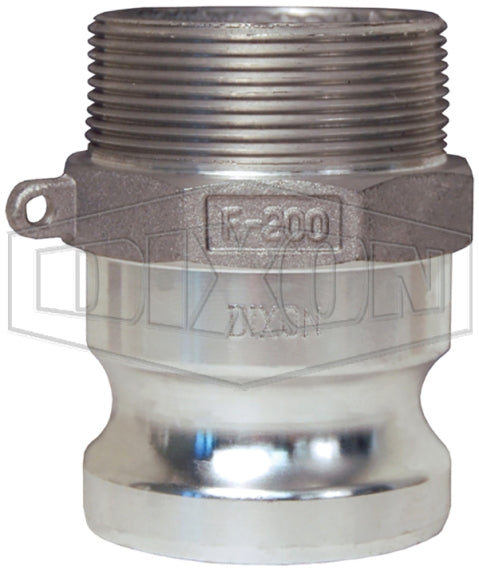

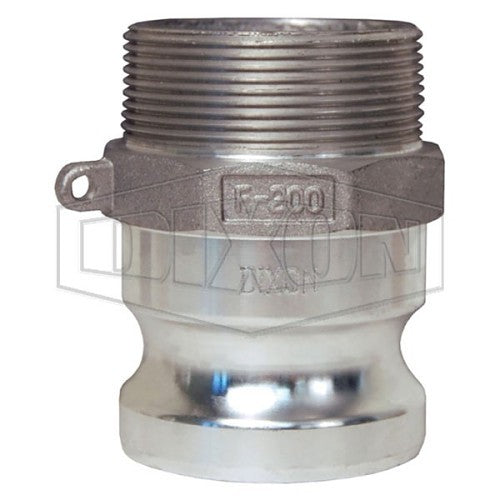

Dixon G300-F-AL 3 in Aluminum Cam and Groove Type F Adapter x Male NPT

Product Description

The Dixon G300-F-AL is a three-inch aluminum cam and groove Type F adapter. This adapter is made from A380 permanent mold aluminum and features a male adapter x MNPT end type. It is ideal for liquid connections and provides a pressure rating of 125 psi. The dimensions include a diameter of three and nineteen sixty-fourths inches and length of three and fifteen sixteenths inches. The adapter meets A-A-59326D specifications for interchangeability. To connect, insert the adapter into the coupler and press down the cam levers. For easy disconnection, lift the cam arms and remove the adapter.

• Pressure rating of 125 psi
• Constructed from durable A380 permanent mold aluminum
• Compatible with A-A-59326D specifications

Product Highlights

This adapter ensures quick and easy connections using cam levers, making it suitable for various liquid handling tasks.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling Co, LLC
• Domestic/Import: Import

Technical Specifications

• End Type: Male Adapter x MNPT
• Fitting/Connector Type: Adapter
• Material: Aluminum
• Nominal Size: 3 in
• Max Operating Pressure: 125 psi
• Shape: Straight
• Ends Configuration: 3 in Male NPT, 3 in Male Cam & Groove
• Warranty: Limited
