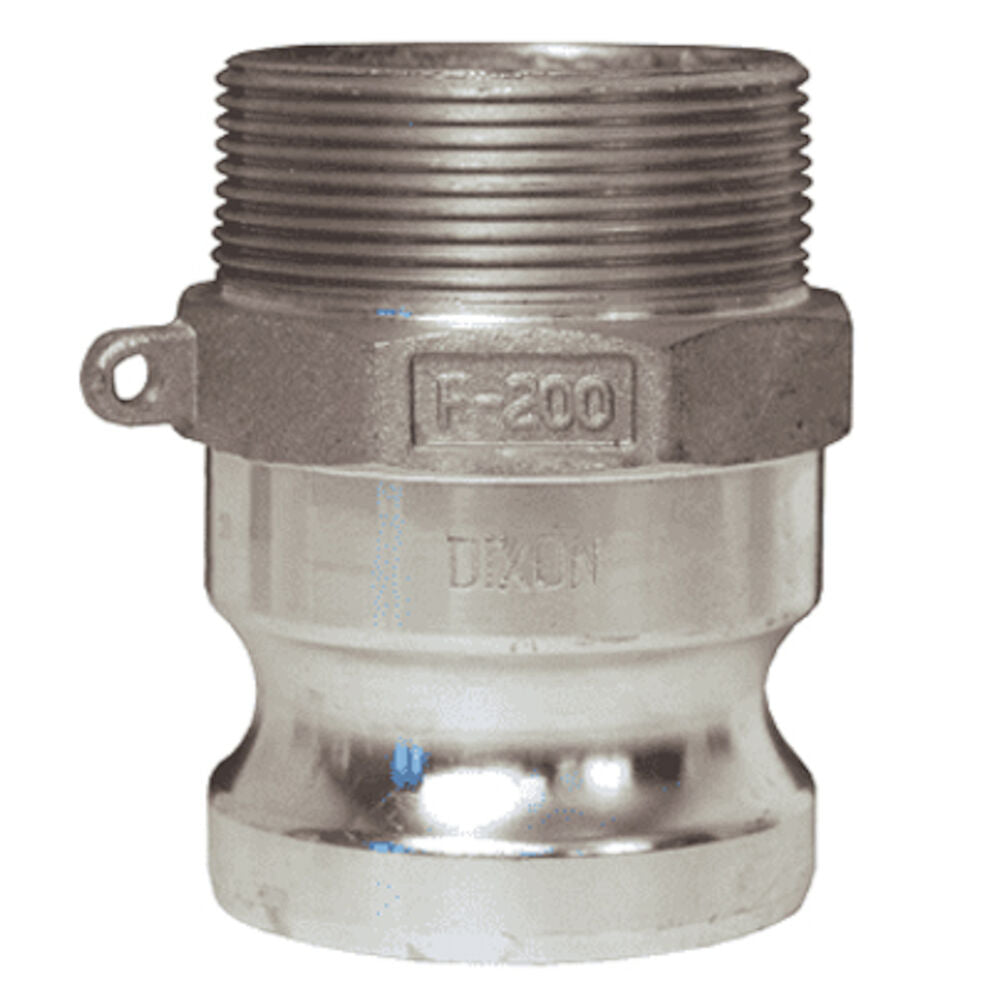

Dixon G200-F-AL 2 Type F Cam and Groove Adapter Male NPT Aluminum

Product Description

The Dixon G200-F-AL is a two-inch Type F cam and groove adapter designed specifically for liquid applications. It is made from A380 permanent mold aluminum, providing durability and reliability. This adapter has a male adapter to MNPT end style. It follows Dixon specifications and is compatible with products meeting A-A-59326D standards. The connection is made by sliding into a coupler and securing it using cam levers. To uncouple, lift the cam arms and remove the adapter. The adapter has a pressure rating of two hundred fifty psi at seventy degrees Fahrenheit when used with compatible Dixon fittings. Note that this adapter is not suitable for compressed air or steam.

• Constructed from A380 permanent mold aluminum.
• Pressure rated to 250 psi at 70 degrees F with Dixon fittings.
• Quick connect and disconnect design using cam levers.

Product Highlights

This cam and groove adapter is ideal for liquid transfer in various applications and ensures quick connections.

Product Information

Standard Information

• Brand: Dixon
• Weight: 0.65 lbs

Technical Specifications

• Fitting/Connector Type: Adapter
• Type: Type F
• Nominal Size: 2 in
• End Style: Male Adapter x MNPT
• Material: Aluminum
• Length: 3-13/32 in
• Pressure Rating: 250 psi
• Application: Designed for use with liquids
• Manufacturer: Dixon Valve & Coupling
• Part Number: G200-F-AL
