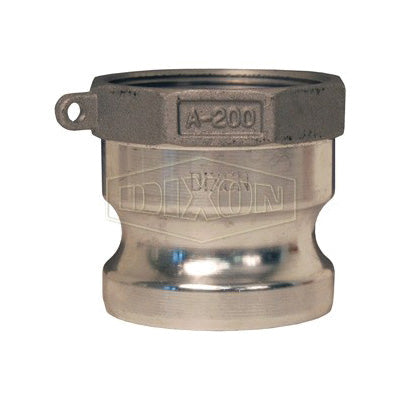

Dixon G150-A-AL Type A Cam and Groove Adapter Male x FNPT Aluminum

Product Description

The Dixon G150-A-AL is a 1-1/2 inch Type A cam and groove adapter. It features a male adapter on one end and a FNPT (Female National Pipe Thread) connection on the other. This adapter is made from A380 permanent mold aluminum, making it suitable for use with liquids.

• Constructed from A380 permanent mold aluminum.
• Rated for a maximum operating pressure of 250 psi at 70 degrees F.
• Interchanges with all products produced to A-A-59326D.

Product Highlights

This adapter is designed for efficient liquid transfer and application, particularly in plumbing and pump systems.

Product Information

Standard Information

• Brand: Dixon
• Weight: 0.25 lbs

Technical Specifications

• Fitting Type: Adapter
• Type: Type A
• Nominal Size: 1-1/2 inches
• End Style: Male Adapter x FNPT
• Material: Aluminum
• Length: 2-3/16 inches
• Pressure Rating: 250 psi
• Application: Designed for use with liquids
• Warranty: Limited
• Domestic/Import: Import
• Connection Size 1: 1-1/2 inches
• Connection Size 2: 1-1/2 inches
• Connection Type: Type A FNPT
• Dimensions: 2-3/16 inches Length
• Hex Size: 2-5/32 inches
• Maximum Operating Pressure: 250 psi
• Designed to interchange with: A-A-59326D
