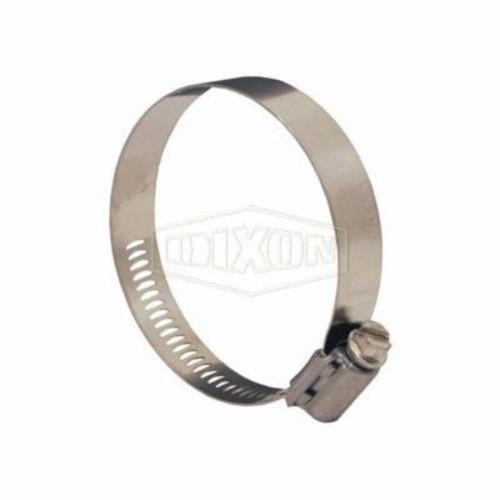

Dixon DIXVA-30028 Aero-Seal 30028 Worm Gear Clamp 1-20/64 to 2-16/64 in

Product Description

The Dixon Aero-Seal DIXVA-30028 Worm Gear Clamp is designed for use in various plumbing and automotive applications. This clamp features a clamping range from one twenty-sixths to two sixteen sixty-fourths inches, making it versatile for different sizes of hoses or tubing. Constructed with a stainless steel band and bolt, it offers reliable strength and durability.

• Clamping range of 1-20/64 to 2-16/64 inches
• Made of 302 stainless steel for corrosion resistance
• Torque rating of fifty inch-pounds

Product Highlights

This clamp provides strong and smooth action due to its band slots. The saddle interlocks into the embossed band, forming a true concentric circle. The four-piece construction ensures stability, while heat-treated screws enhance reliability.

Product Information

Standard Information

• Brand: Dixon
• MPN: DIXVA-30028

Technical Specifications

• Grade: 302
• Series: 300
• Torque Rating: 50 in-lb
• Width: 9/16 in
• Clamping Range: 1-20/64 to 2-16/64 in
• Band Material: 302 stainless steel
• Bolt Material: 305 stainless steel
• Domestic/Import: Domestic
