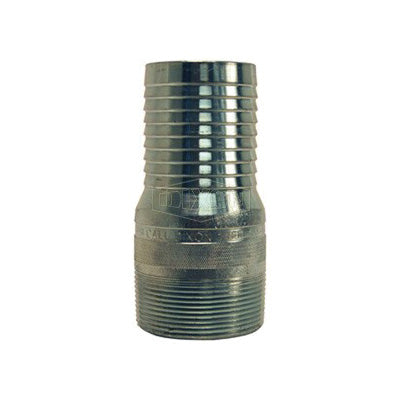

Dixon DIXVA-2253/4 STC5 King No Knurl Combination Nipple, 3/4 in

Product Description

Dixon STC5 King No Knurl Combination Nipple, MPN DIXVA-2253/4 is designed for use in low-pressure discharge and suction service for compatible liquids. The nipple features a hose shank x male national pipe thread end style, suitable for various applications. It is made from carbon steel and has a zinc plated finish for improved corrosion resistance.

• No knurl design for easier handling.
• Operating pressure varies based on hose construction and clamping systems.
• Recommended for oil suction and discharge applications.

Product Highlights

This product is part of the King series, featuring reliable assembly with compatible crimp sleeves.

Product Information

Standard Information

• Brand: Dixon
• Model Number: DIXVA-2253/4

Technical Specifications

• Dimensions: 25/32 x 1-1/16 in Dia
• Finish: Zinc Plated
• Length: 3-1/8 in
• Series: King
• Type: No Knurl
• Nominal Size: 3/4 in
• End Style: Hose Shank x MNPT
• Material: Carbon Steel
• Domestic/Import: Domestic
