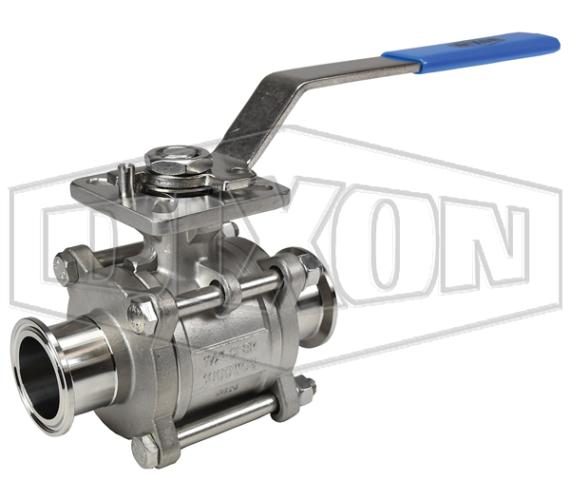

Dixon BV2CV-200CC-A BV2 3-Piece 2-Way Encapsulated Ball Valve 2 in Clamp

Product Description

The Dixon BV2CV-200CC-A is a 3-piece 2-way encapsulated ball valve designed for efficient fluid control. This valve features a full port design and is made from CF8M stainless steel, offering excellent resistance to corrosion. It has a nominal size of two inches and is suitable for a wide range of applications.

• Lockable handle actuator for secure operation
• Can handle pressures up to 1000 psi WOG
• Temperature range from negative twenty to four hundred fifty degrees Fahrenheit

Product Highlights

This valve's balanced encapsulated construction minimizes cold flow, making it ideal for various piping systems.

Product Information

Standard Information

• Brand: Dixon
• Manufacturer: Dixon Valve & Coupling

Technical Specifications

• Actuator Type: Lockable Handle
• Ball Material: CF8M Stainless Steel
• Body Material: CF8M Stainless Steel
• End Style: Clamp
• Inlet to Outlet Length: 6.4 inches
• Nominal Size: 2 inches
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Series: BV2
• Temperature Rating: -20 to 450 degrees Fahrenheit
• Top to Inlet Center: 3.1 inches
• Trim Material: PTFE
• Type: 3-Piece 2-Way Encapsulated
