Dixon B5107V300CC-C Sanitary Butterfly Valve 3 In Clamp Replacement MPN

Product Description

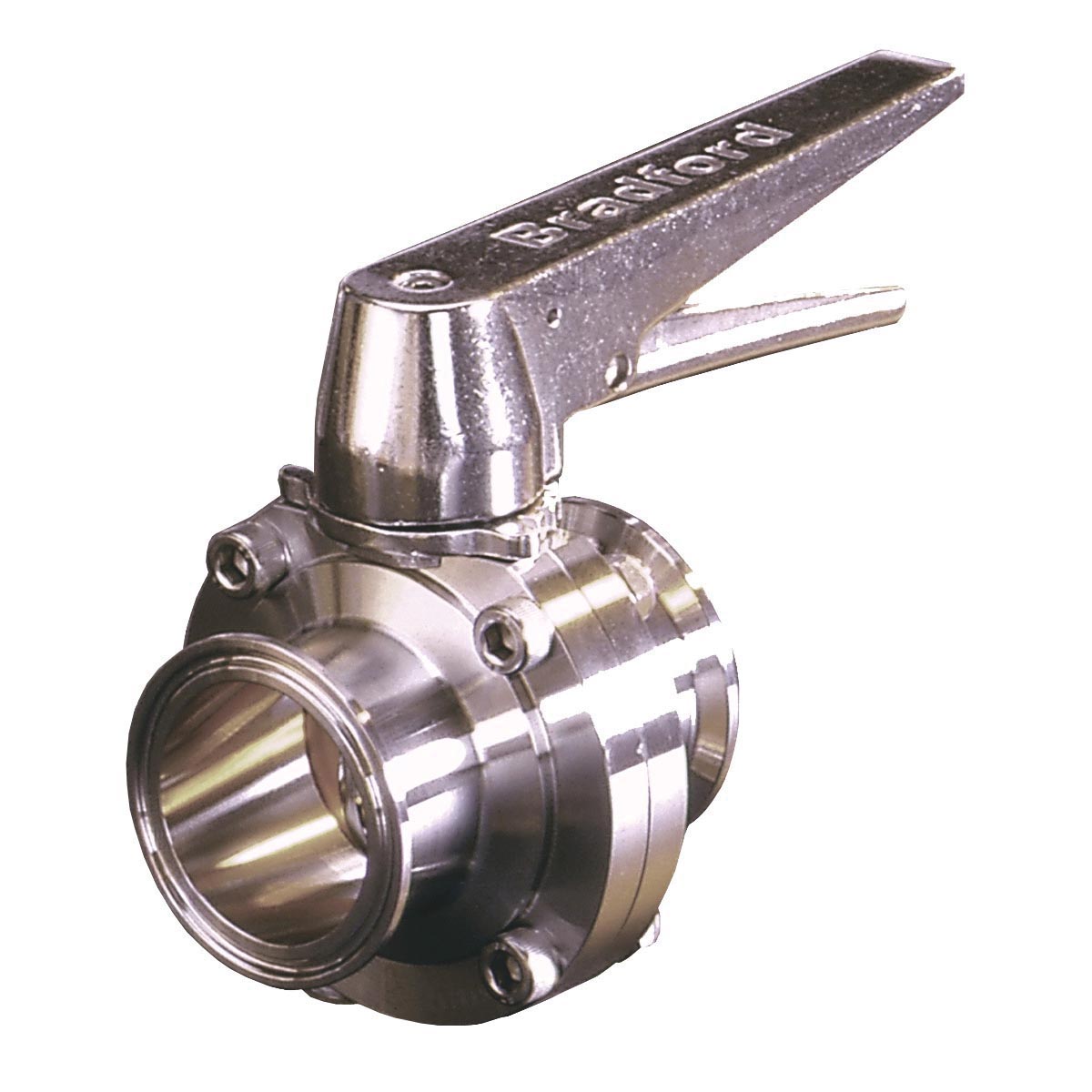

The Dixon Sanitary Butterfly Valve, MPN B5107V300CC-C, is designed for efficient flow control in sanitary process applications. This valve features a three-inch size with a clamp end style, ensuring easy installation and removal. It has a pressure rating of one hundred ten psi and operates effectively within a temperature range of thirty-two to two hundred degrees Fahrenheit. The body is constructed from 316L stainless steel, providing durability and resistance to corrosion.

• Manual trigger handle for easy operation
• Can handle low to medium viscosity fluids
• Field serviceable design

Product Highlights

This valve is based on the B5107 series and is ideal for isolating or controlling the flow of fluids in various applications.

Product Information

Standard Information

• Body Material: 316L Stainless Steel
• Domestic/Import: Import

Technical Specifications

• Actuator Type: Manual Trigger Handle
• End Style: Clamp
• Media: Fluid
• Nominal Size: 3 In
• Pressure Rating: 110 psi
• Series: B5107
• Temperature Rating: 32 to 200 deg F
• Trim Material: 316L Stainless Steel/FKM
