DIXON B5107V200CC-C Sanitary Butterfly Valve 2 In Clamp Replacement B5107V200CC-C

Product Description

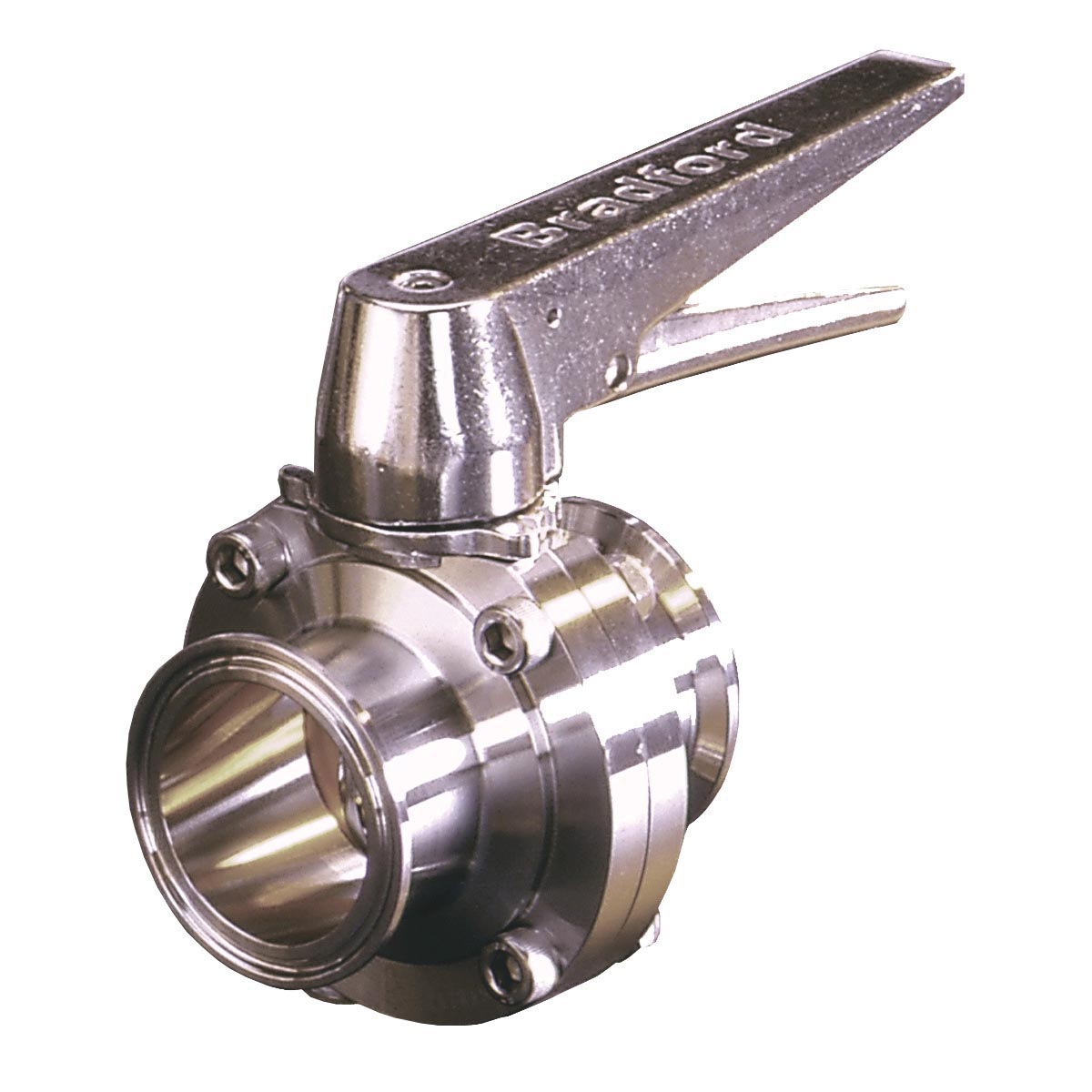

The Dixon Sanitary Butterfly Valve B5107V200CC-C is designed for fluid media control in various sanitary process applications. This two-inch valve features a manual trigger handle actuator and is made from durable 316L stainless steel.

• Can control and isolate flow in sanitary processes
• Suitable for low to medium viscosity fluids
• Field-serviceable with a stainless steel disc and FKM seat

Product Highlights

The valve operates under a pressure rating of 140 psi and is effective at temperature ranges from thirty-two to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Dixon
• Manufacturer: Dixon Valve & Coupling

Technical Specifications

• Actuator Type: Manual Trigger Handle
• Body Material: 316L Stainless Steel
• Domestic/Import: Import
• End Style: Clamp
• Media: Fluid
• Nominal Size: 2 In
• Pressure Rating: 140 psi
• Series: B5107
• Temperature Rating: 32 to 200 deg F
• Trim Material: 316L Stainless Steel/FKM
