DIXON B2CMP-G250 90 Degree Clamp Elbow 2-1/2 Tube OD Replacement MPN

Product Description

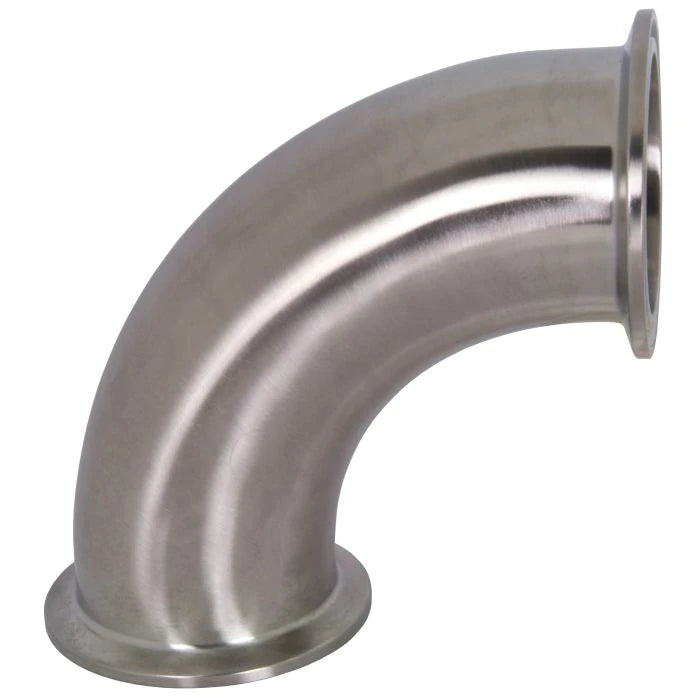

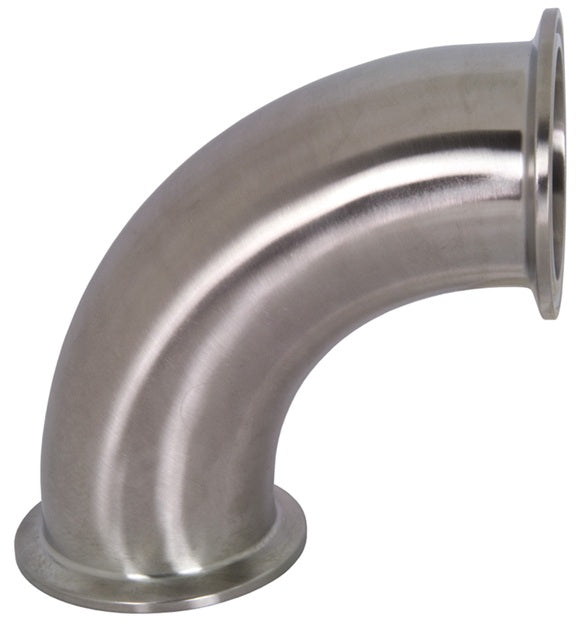

The DIXON B2CMP-G250 is a 90-degree clamp elbow made for sanitary applications. Made from 304 stainless steel, it has a tube outer diameter of two and one-half inches and features clamp end connections. This elbow complies with 3-A Sanitary Standards, ensuring safe usage in hygienic settings. Use this fitting to efficiently change the direction of piping while maintaining cleanliness.

• 90-degree angle for efficient direction change
• Constructed of durable 304 stainless steel
• Meets 3-A Sanitary Standards for safe usage

Product Highlights

The elbow fitting supports proper sanitary installations, ideal for food and beverage processes.

Product Information

Standard Information

• Brand: Dixon Sanitary
• MPN: B2CMP-G250

Technical Specifications

• Material: 304 Stainless Steel
• Tube OD: 2-1/2 inches
• Angle: 90 degrees
• Fitting Type: 90 Degree Elbow
• End Style: Tube
• Ends Configuration: 2-1/2 inches Sanitary Clamp End, 2-1/2 inches Sanitary Clamp End
• Weight: 1.15 lbs
• A: 4.25 inches
• B: 4.25 inches
• ID: 2.37 inches
• OD: 2.50 inches
• R: 3.75 inches
• Standards and Approvals: 3-A Sanitary Standards for Sanitary Fittings No. 63-04 (Authorization No. 621)
• Unit Count: 1
