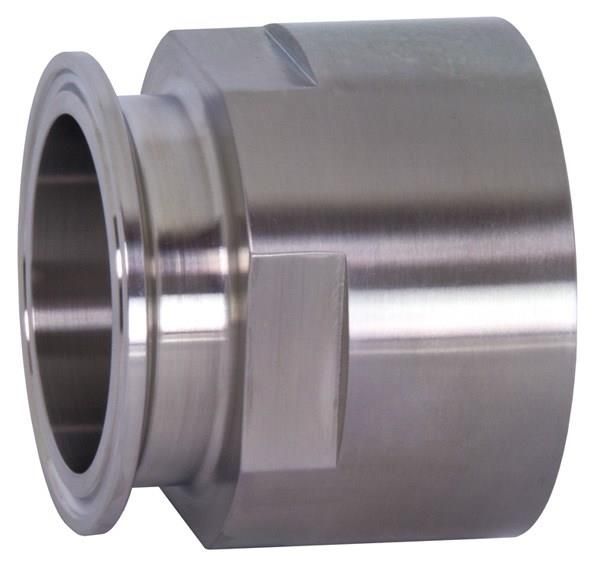

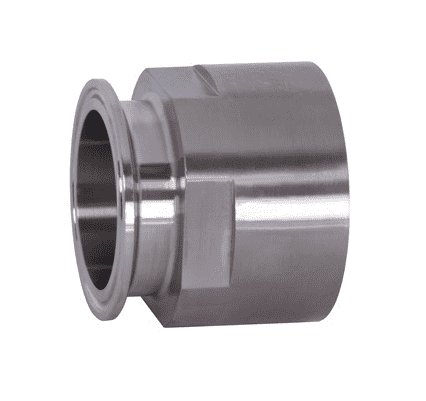

Dixon 22MP-G100 Clamp x Female NPT Adapter - 1 inches Tube OD

Product Description

The DIXON 22MP-G100 is a sanitary clamp adapter with a clamp x female NPT connection, constructed from 304 stainless steel. It facilitates connections between sanitary clamp fittings and female NPT threaded components. Designed for durability and compatibility in sanitary environments. Commonly used in food, beverage, and pharmaceutical applications.

• Constructed from 304 stainless steel
• Features a 1" tube OD
• Includes a 1" female NPT thread

Product Highlights

This clamp adapter provides a secure and sanitary connection between clamp and NPT components.

Product Information

Standard Information

• Brand: DIXON
• Manufacturer Part Number: 22MP-G100

Technical Specifications

• Tube OD: 1"
• Material: 304 Stainless Steel
• Thread: NPT
• Thread Size: 1"
• Shape (Orientation): Straight
• Ends Configuration: 1in Sanitary Clamp End, 1in Female NPT
• Brand: DIXON VALVE & COUPLING COMPANY, LLC
• MPN: 22MP-G100
• Product: Adapters
• Style: Clamp End Fittings
• Tube O.D.: 1"
• Domestic/Import: Domestic
• End Style: Tube x FNPT
• Fitting/Connector Type: Adapter
• Nominal Size: 1 In
• Series: 22MP
