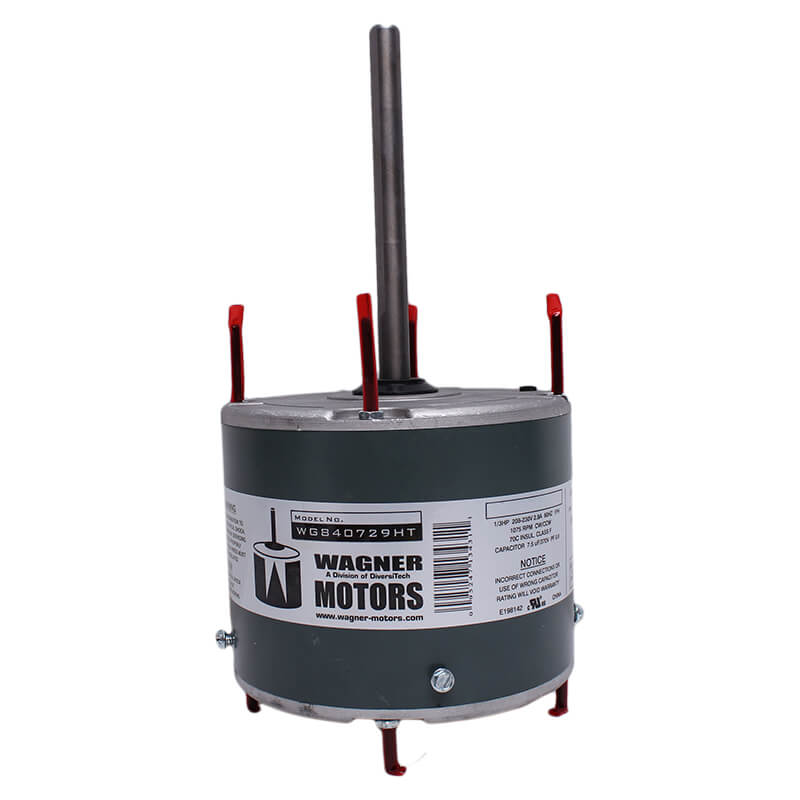

DiversiTech WG840729HT 1/3 HP 208-230 VAC Hi-Temp Condenser Fan Motor 1075 RPM

Product Description

DiversiTech's WG840729HT is a high-temperature condenser fan motor designed for reliable performance in HVAC applications. This motor operates at 1/3 horsepower and supports voltages between 208 and 230. It runs at a speed of 1075 RPM. The design is tailored for easy installation, making it suitable for contractors and service technicians.

• High-temperature operation
• Electric motor is reversible
• Automatic thermal overload protection

Product Highlights

This condenser fan motor features a standard 48 frame casing and can be installed using standard mounting brackets. It comes with extended bolts and lead wires for convenient setup.

Product Information

Standard Information

• Brand: DiversiTech
• MPN: WG840729HT

Technical Specifications

• Horse Power: 1/3
• Voltage: 208-230 VAC
• Amperage: 2.8 A
• RPM: 1075
• Frequency: 60 Hz
• Frame Size: 48
• Insulation Class: B
• Max Ambient Temperature: 158 F
• Type: Hi-Temp Motor
• Rotation: Reversible
• Bearings: Ball
• Protection: Automatic thermal overload
• Weight: 3 lbs
• Shipping Dimensions: 6 x 4 x 2 inches
