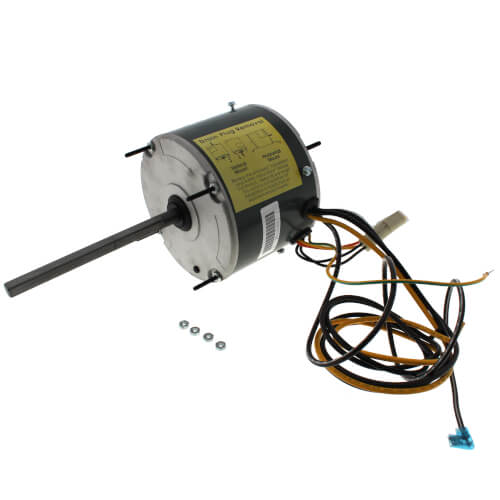

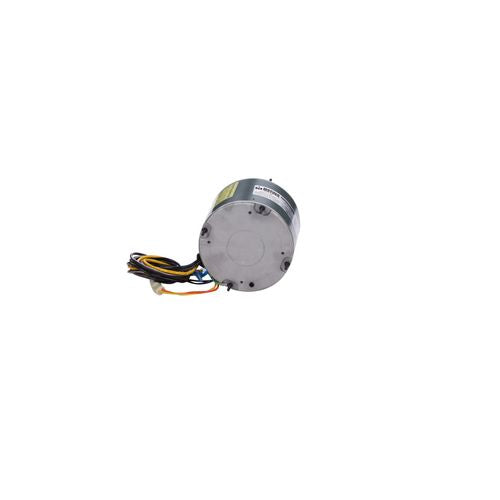

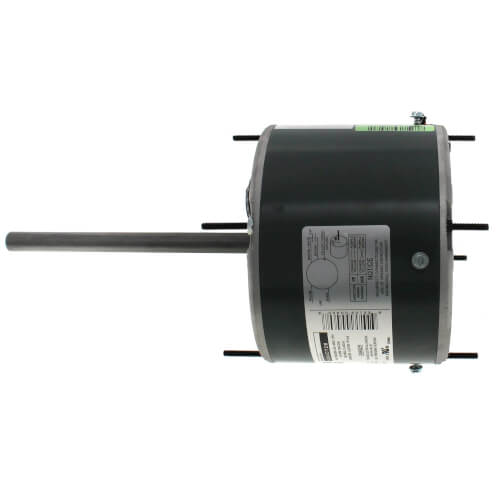

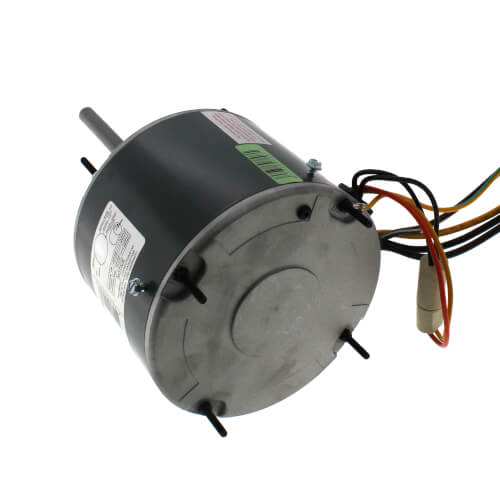

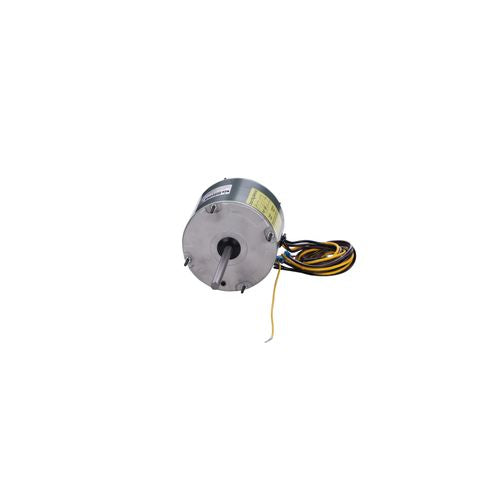

Diversitech WG840728HT Condenser Fan Motor 1/4 HP 208-230 VAC

Product Description

The Diversitech WG840728HT is a condenser fan motor with a power rating of one-quarter horsepower, operating at 208-230 VAC. This motor is designed for effective condenser fan applications and can be installed using standard forty-eight frame mounting brackets.

• Includes drain holes with plugs in both end plates
• Features automatic thermal overload protection
• Capable of operating in both clockwise and counter-clockwise directions

Product Highlights

This motor is ideal for HVAC systems, ensuring reliable operation with features such as thermal overload protection and reversible functionality.

Product Information

Standard Information

• Brand: Diversitech
• MPN: WG840728HT

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Horse Power: 1/4
• Voltage: 208/230 VAC
• Amperage: 2.2 A
• RPM: 1075
• Speeds: 1
• Capacitor Voltage: 370 VAC
• Hertz: 60
• Insulation Class: B
• Mount: Shaft up, shaft down, or belly band
• Bearings: Sleeve
• Finish: Grey-green powdercoat
• Frame Size: 48
• Rotation: CW/CCW
• Temperature Rating: 70 degrees C Ambient
• Lead Wire Length: 30 inches
• Lead Wire Gauge: #18 AWG
• Motor Diameter: 5.59 inches
• Motor Length: 10.584 inches
• Shaft Diameter: 1/2 inches
• Shaft Flats: One flat
• Body Diameter: 5.625 inches
• Enclosure Type: Totally Enclosed
• Application Type: Condenser Fan Motors
• Frequency Rating: 60 Hz
• Phase: Single phase
• Service Factor: 1
• Motor FLA: 2.2 Amp
• Application: HVAC
• Shaft Size: 1/2 inches Diameter x 5 inches Length
