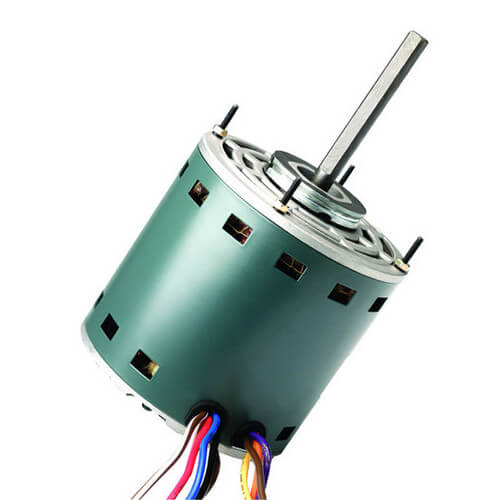

DiversiTech WG840590 3/4 HP 208-230 VAC Direct Drive Furnace Blower Motor

Product Description

The DiversiTech WG840590 is a three-quarters horsepower direct drive furnace blower motor designed for HVAC applications. It operates at 208-230 VAC and is suitable for continuous duty. It installs with standard 48 frame mounting brackets and features a standard shaft length and diameter, making it a versatile choice for various installations.

• Efficient low power consumption
• Automatic thermal overload protection
• Class B insulation for enhanced durability

Product Highlights

This motor features an innovative design for easy installation and quiet operation, suitable for residential and commercial furnace systems.

Product Information

Standard Information

• Power: 3/4 HP
• Voltage: 208-230 VAC

Technical Specifications

• RPM: 1075
• Hertz: 60
• Amperage: 5.4
• Bearings: Sleeve (ball bearing for WG840595/96)
• Frame Size: 48
• Motor Diameter: 5.59 inches
• Shaft Diameter: 1/2 inches
• Lead Wire Length: 30 inches
