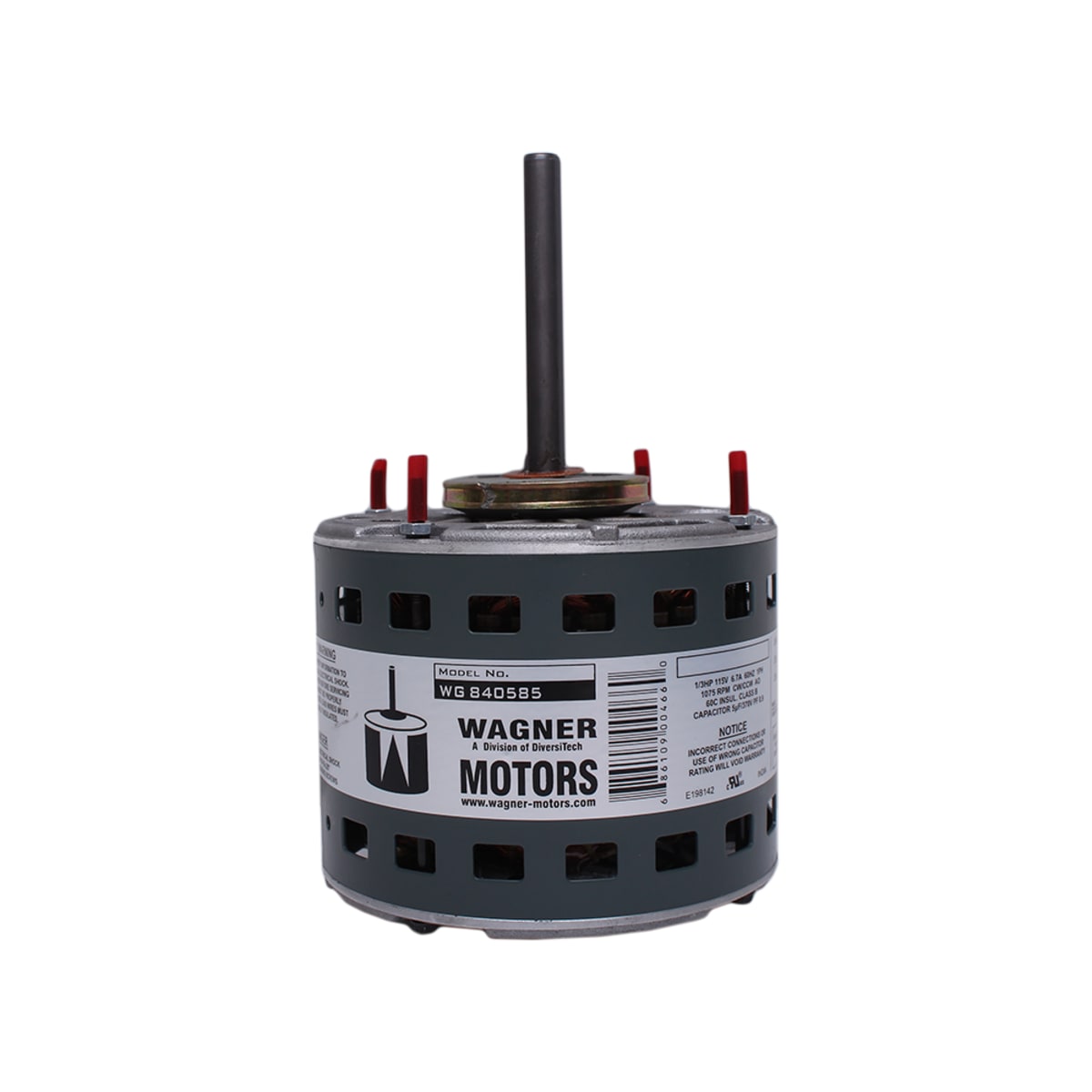

DiversiTech WG840585 Direct Drive Furnace Blower Motor, 1/3 HP, 115V

Product Description

The DiversiTech WG840585 is a Direct Drive Furnace Blower Motor rated at 1/3 horsepower and operates at 115V. This motor is designed to fit standard 48 frame mounting brackets and offers an electrical performance of 1075/3 RPM with a full load amp draw of 5.0. It features automatic overload protection and Class B insulation, ensuring reliability in demanding conditions.

• Includes reversing plugs and extended mounting bolts for easy installation.
• Ball bearing design enhances durability and increases motor life.
• Insulated connections provide safety during operation.

Product Highlights

This motor allows for electrically reversible operation, aiding versatility in HVAC applications.

Product Information

Standard Information

• Brand: DiversiTech
• Part Number: WG840585

Technical Specifications

• RPM: 1075
• Amperage: 5.0 FLA
• Hertz: 60
• Phase: Single
• Volts: 115
• Horsepower: 1/3
• Capacitor: 10/370
• Body Diameter: 5.625 inches
• Mounting Type: Belly Band
