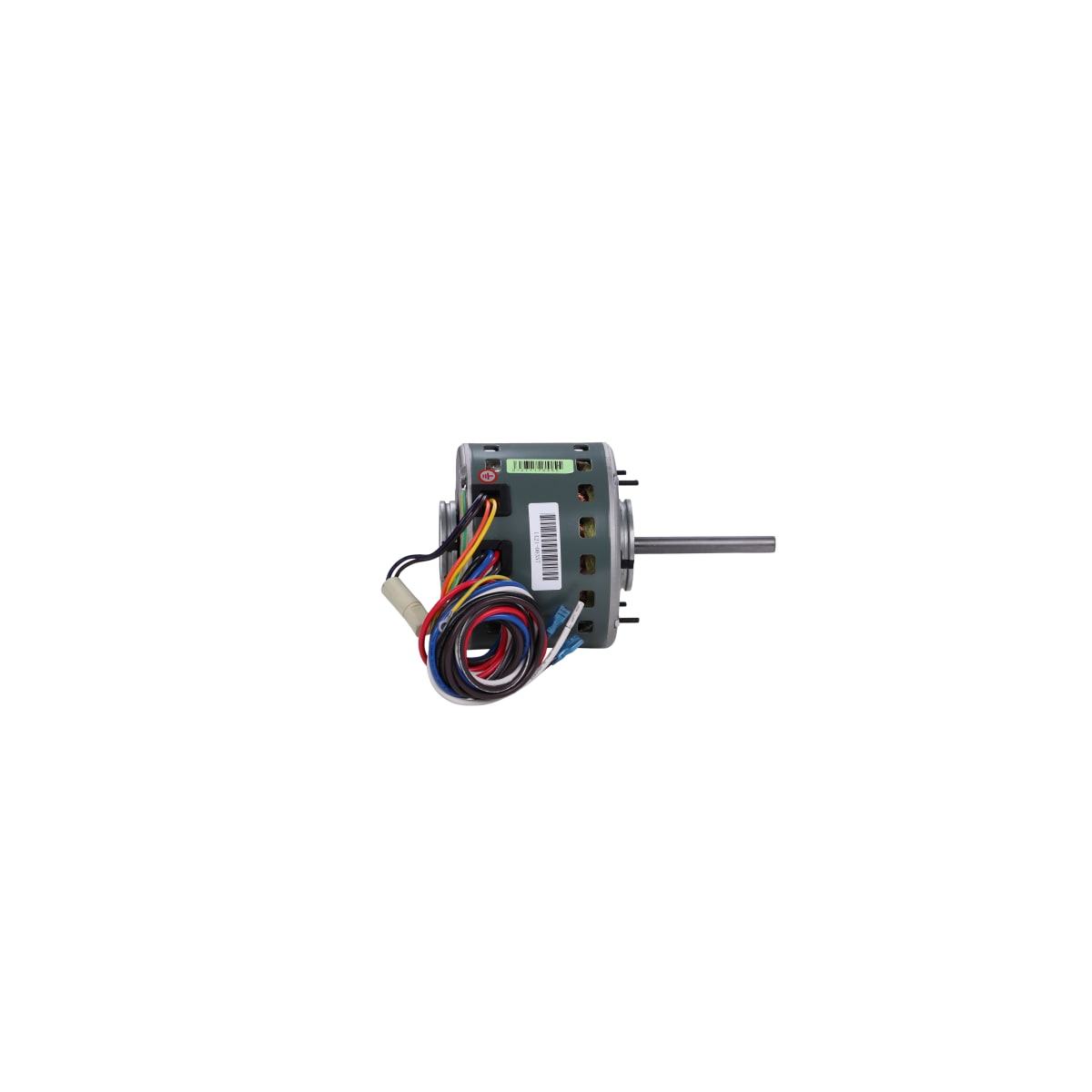

Diversitech WG840584 Motor 1/4HP 208-230V

Product Description

The Diversitech WG840584 Motor is a direct drive furnace blower motor with a power rating of 1/4 horsepower and operates at 208-230 volts. It is designed for easy installation and is highly durable.

• 1/4 horsepower motor
• 208-230 volts
• Durable construction

Product Highlights

Ideal for HVAC applications, the WG840584 motor features a standard 48 frame size, making it versatile for various mounting brackets. The motor is electrically reversible and equipped with an automatic thermal overload protector for safety. Quiet operation and continuous duty make it suitable for extensive use.

Product Information

Standard Information

• Brand: Diversitech
• Category: Furnace Blower Motors
• Country of Origin: China

Technical Specifications

• Horsepower: 1/4
• Voltage: 208/230 VAC
• Amperage: 2.2
• Speed: 3
• Frame Size: 48
• Insulation Class: B
• Rotation: CW/CCW
• Weight: 12.1 lbs
• Shaft Diameter: 1/2 inch
• Motor Length: 9.133 inches
• Shaft Length: 4.5 inches
• Capacitor: 370 VAC
• Bearings: Sleeve
• Lead Wire Length: 30 inches
• Motor Diameter: 5.59 inches
• Mount: Shaft up, shaft down, or belly band
• Temperature Rating: 60°C / 140°F
