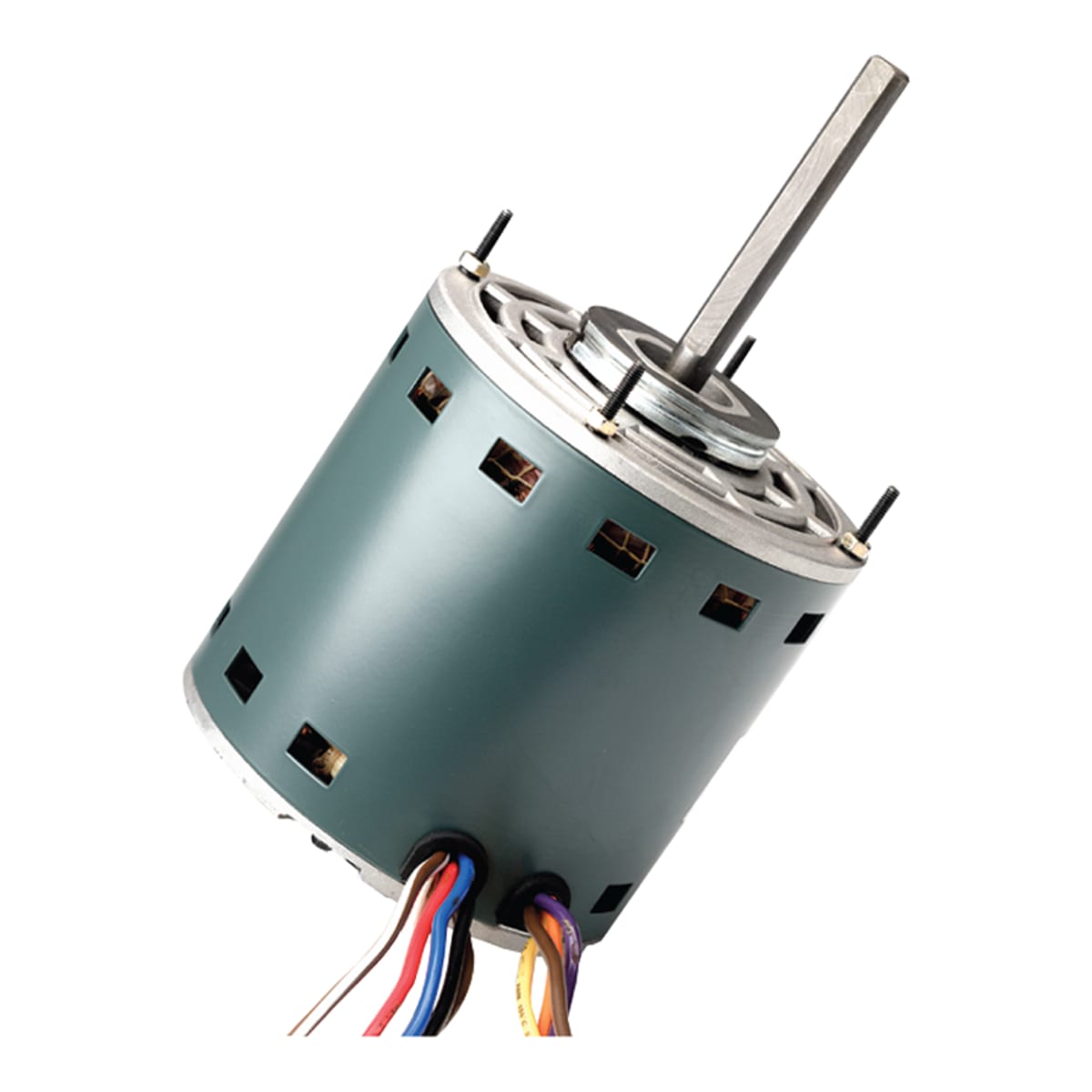

DiversiTech WG840583 Direct Drive Furnace Blower Motor, 1/4 HP, 1075 RPM, 3 Speed, 370 VAC Run Capacitor

Product Description

The DiversiTech WG840583 is a Direct Drive Furnace Blower Motor with a power rating of 1/4 horsepower, designed for efficient heating applications. This motor features a speed of 1075 RPM and operates at 115 volts with a full load amperage of 3.8. It integrates easily with standard 48 frame mounting brackets, facilitating straightforward installation.

• Operates at 115 volts and 3.8 amps.
• Includes 36-inch leads for easy connectivity.
• Equipped with automatic overload protection for safety.

Product Highlights

This motor is specifically designed for continuous duty and is suitable for air-over applications. It possesses class B insulation and is electrically reversible, making it versatile for various setups.

Product Information

Standard Information

• Brand: DiversiTech
• MPN: WG840583

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 115 V
• RPM: 1075
• Amps: 3.8
• Hertz: 60
• Phase: Single
• Rotation: Reversible
• Mounting Type: Belly Band
• Insulation Class: B
• Temperature Rating: 40°C / 130°F
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inches
• Bearing Type: Sleeve
• Capacitor: 370 VAC
