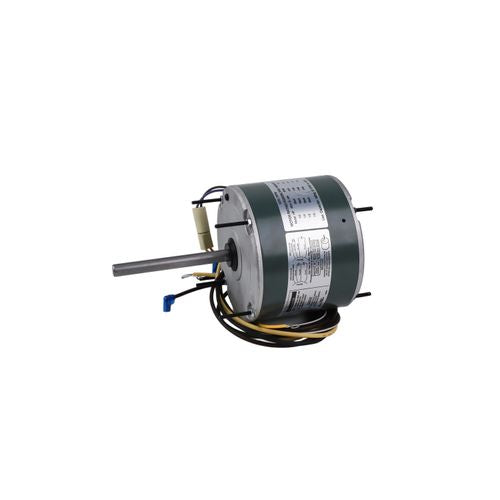

Diversitech WG840458 Multiple Horsepower Motor 1/3-1/6 hp 208/230V 1075RPM

Product Description

The Diversitech WG840458 multiple horsepower condenser fan motor is designed for aftermarket applications. This motor operates at 208-230V and 1075 RPM, covering a range of applications from 1/3 to 1/6 HP. It features extended bolts and 36-inch leads for ease of installation and is electrically reversible.

• Standard 48 Frame Motor Casing Size
• Electrically Reversible
• Automatic Thermal Overload Protector

Product Highlights

Designed for a range of applications, this condenser fan motor features extended mounting bolts for easy installation.

Product Information

Standard Information

• Brand: Diversitech
• Manufacturer Part Number: WG840458

Technical Specifications

• MPN: WG840458
• Brand: DIVERSITECH
• UPC: 09524716318
• RPM: 1075
• Duty: Continuous Air Over
• Frame: 48
• Hertz: 60
• Speeds: 1
• Voltage: 208-230v
• Amperage: 1.8, 1.7, 2.8, 1.6
• Bearings: Ball
• Rotation: Reversible
• Horse Power: 1/4, 1/6, 1/3, 1/5
• Product Type: Condenser Fan Motor
• Insulation Class: B
• Overload Protection: Automatic, Thermally
• Max Ambient Temp (°F): 140°F
• Rated Horsepower (HP): 1/3 - 1/6
• Body Diameter ( in.): 5.625
• Capacitor: 7.5/370
• Enclosure: Totally Enclosed
• Motor Type: PSC
• Mounting Type: Belly Band
• Temp. Rating: 60° C / 140° F
• Shaft ( in.): 1/2 in. x 5 in.
• Frequency Rating: 60 Hz
• Application Type: Designed for 370 volt capacitors
• Temperature Rating: 60 to 140 deg C
• Type: Multiple
