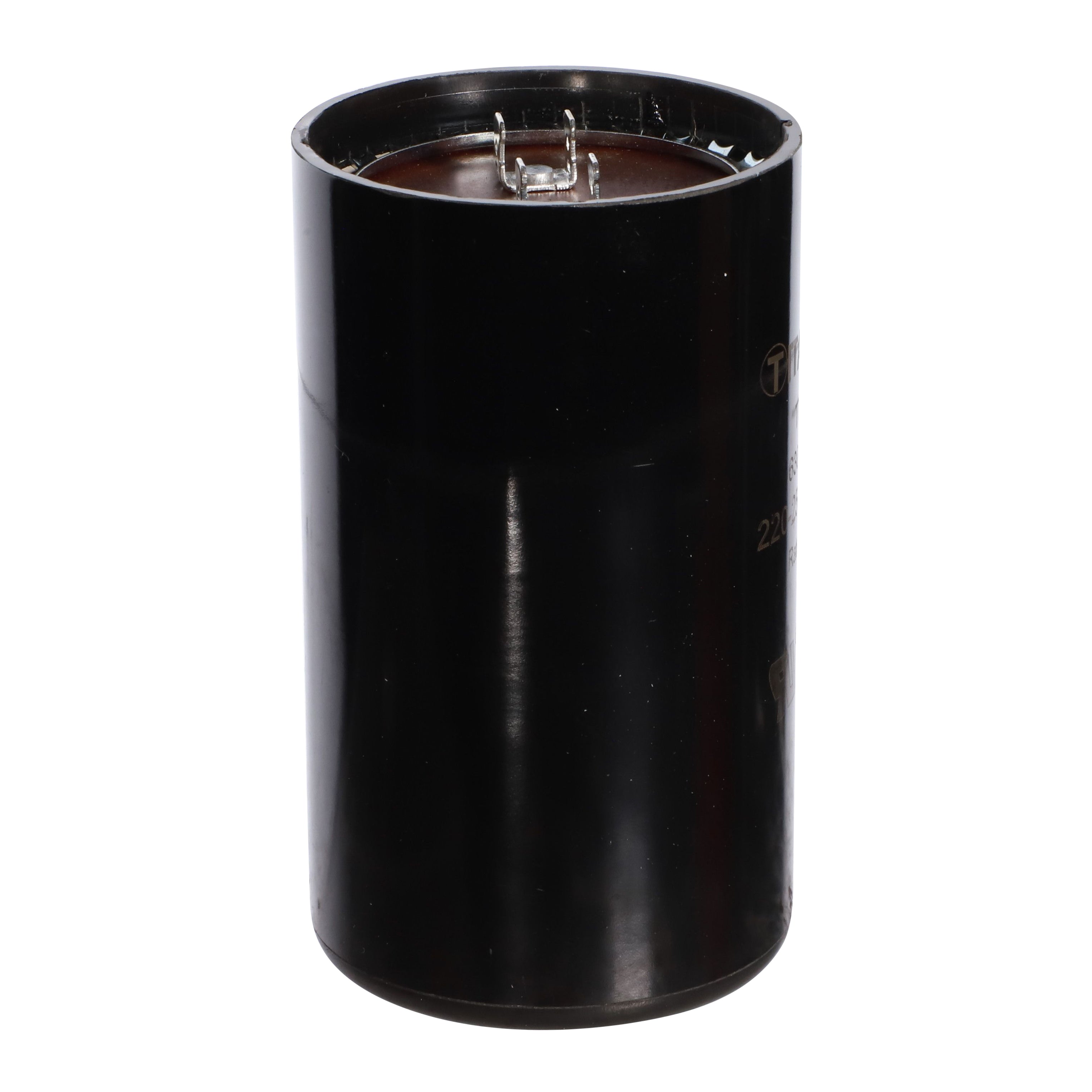

Diversitech TTMJ630 Titan Pro Start Capacitor 630-750 MFD 220-250 Volt

Product Description

The Diversitech TTMJ630 Titan Pro™ Start Capacitor is a dry, electrolytic, non-polarized capacitor designed for intermittent duty in AC motor starting circuits. The case is made of moisture and oil resistant molded phenolic resin or plastic. It is UL and cUL recognized and rated for a 3-second start with 20 starts per hour.

• Dry, electrolytic, non-polarized capacitors for intermittent duty in AC motor starting circuits
• Cases are made of moisture and oil resistant molded phenolic resin or plastic
• Standard dual blade terminals
• Operating temperature range: -40°C to 65°C (-40°F to 149°F)

Product Highlights

This start capacitor operates between -40°C to 65°C and is suitable for ducted or ductless systems. It features standard dual blade terminals and is UL and cUL recognized.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TTMJ630

Technical Specifications

• Volts: 220_250
• Shape: Round
• Ducted or Ductless: Ducted or Ductless
• MFD Rating: 630 - 750
• Voltage: 220-250 VAC
• MFD: 630-750
• Case Size: 8
• Operating temperature range: -40°C to 65°C (-40°F to 149°F)
• Certifications: UL and cUL recognized
• Start Time: Rated 3-second start
• Starts per hour: 20
• Hertz: 50/60
