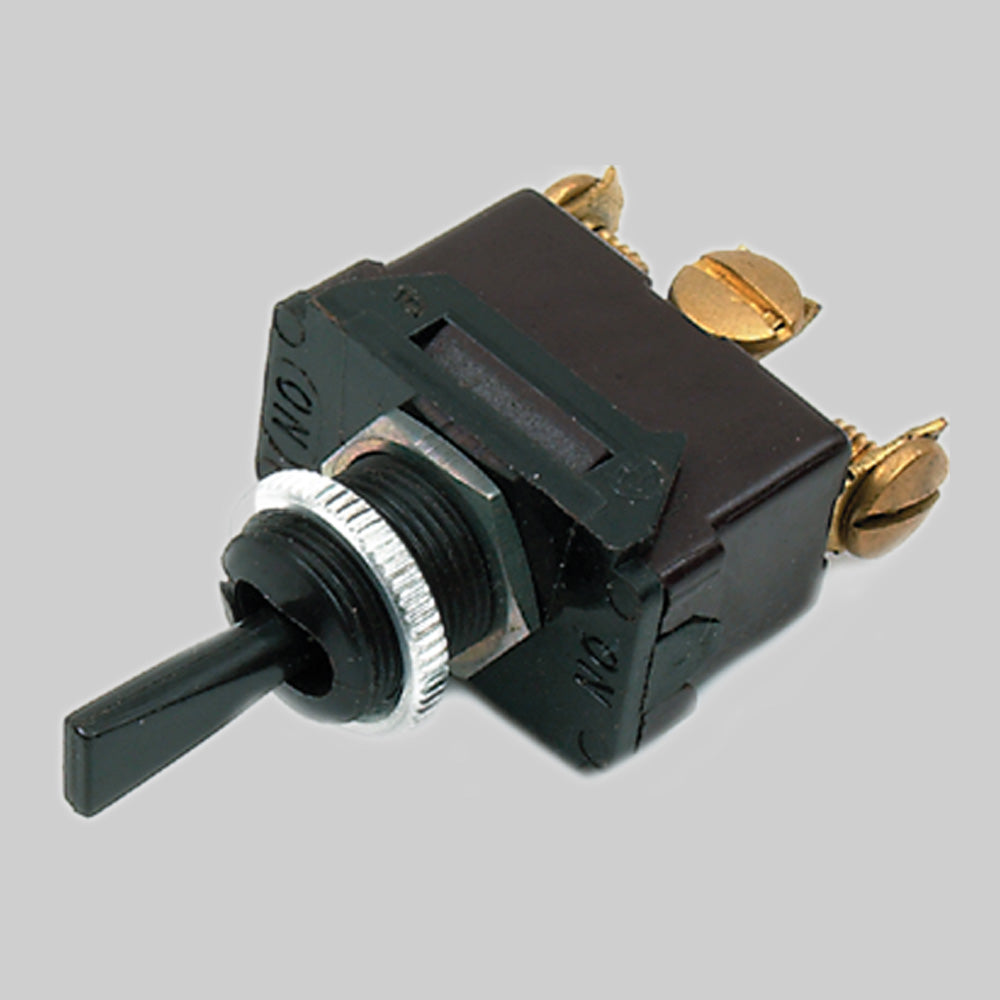

Diversitech ts-5 Dpdt Toggle Switch Wagner 82610C

Product Description

The DIVERSITECH ts-5 is a double-pole double-throw (DPDT) toggle switch designed as a replacement for the Wagner 82610C. This switch provides reliable circuit switching in HVAC and related trade applications, allowing a single actuator to control two separate circuits simultaneously and route each to one of two positions. Licensed electricians and HVAC technicians typically specify this part during control circuit repairs and equipment servicing where the original Wagner switch has failed or requires replacement.

The ts-5 is suited for use in residential and light commercial electrical control applications. It serves as a direct replacement in systems originally equipped with the Wagner 82610C toggle switch, making it a practical stocking item for technicians who service a range of HVAC equipment and electrical panels that rely on DPDT switching logic.

Key Features

• Double-pole double-throw (DPDT) switching configuration for dual-circuit control
• Direct OEM-style replacement for Wagner 82610C toggle switch
• Compact toggle actuator design suited to control panel and equipment enclosure installation
• Intended for trade professional installation in HVAC and electrical service applications

Compatibility

Designed as a replacement for the Wagner 82610C DPDT toggle switch. Verify switch ratings and terminal configuration match the existing application before installation.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician. De-energize and lock out the circuit before removing the existing switch or making any wiring connections. Follow applicable NEC requirements for switch installation in control and power circuits. Confirm the replacement switch ratings are appropriate for the circuit load before returning the system to service.

Technical Specifications

• Switch Type: Double-Pole Double-Throw (DPDT)
• Replaces: Wagner 82610C

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: ts-5
