Product Description

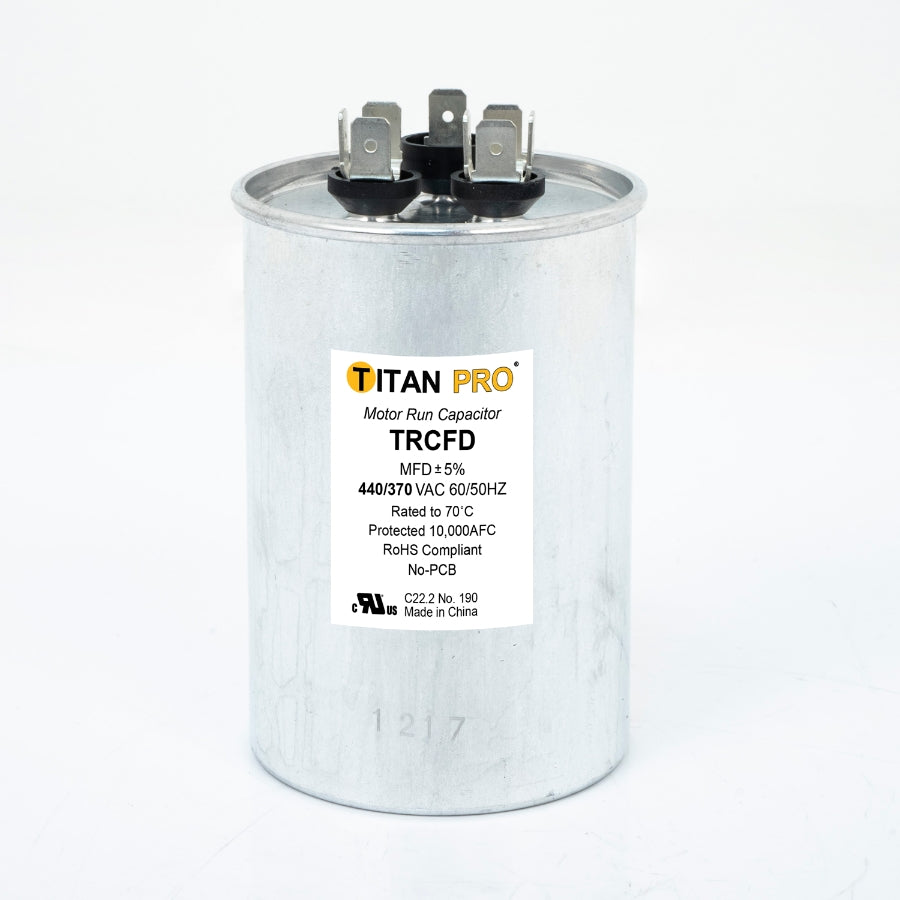

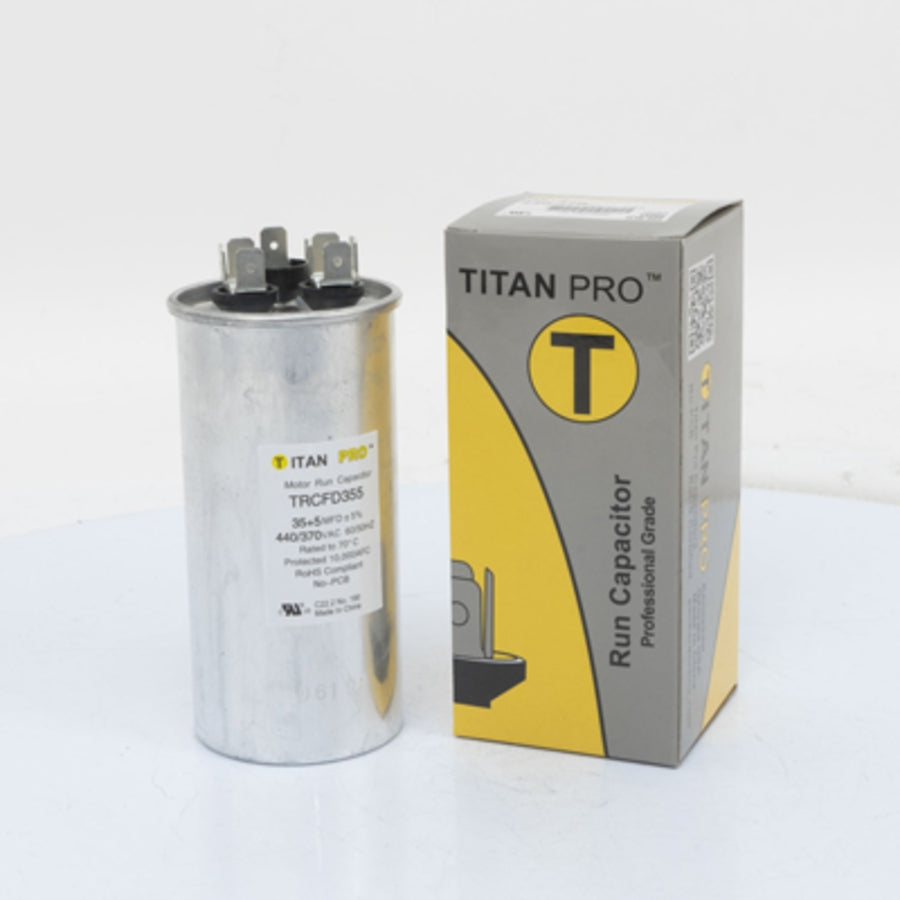

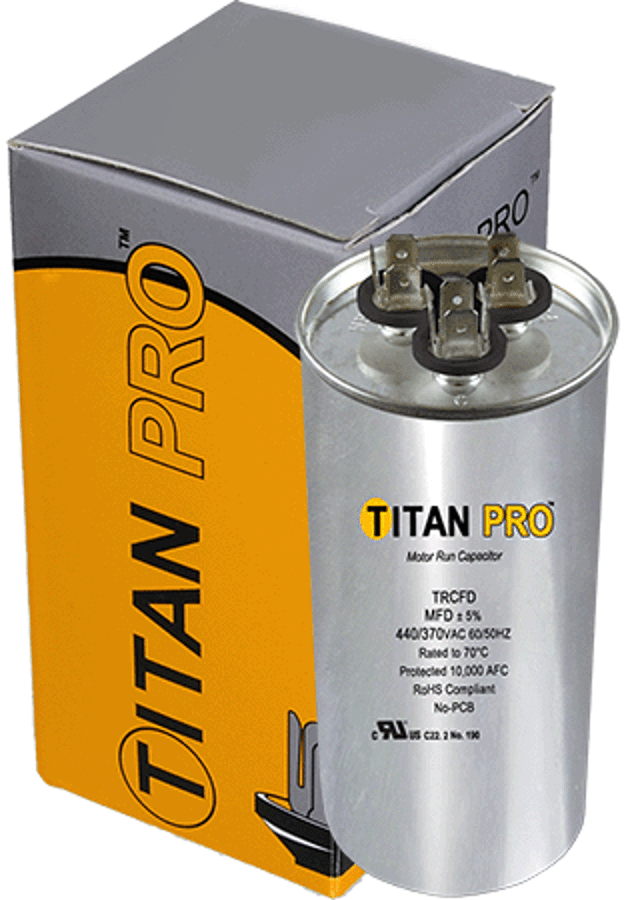

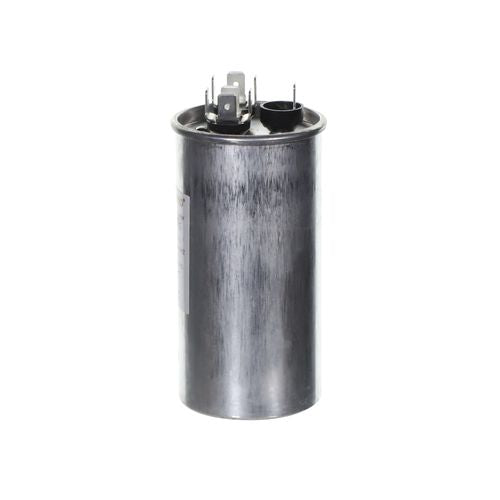

The DIVERSITECH trcfd305 is a dual-rated motor run capacitor designed for use in HVAC systems where a single round capacitor serves both the compressor and the fan motor. Rated at 30+5 microfarads (MFD) and approved for 440/370 volts, this unit operates at 50 and 60 hertz, making it suitable for a broad range of residential and light commercial equipment. The round form factor measures 1.97 inches in diameter by 3.94 inches in length and weighs 0.55 pounds. Licensed HVAC technicians install this capacitor as a direct replacement when run capacitors fail or when start and run performance degrades.
This capacitor fits ducted and ductless split systems alike, covering a wide install base in the field. The 440/370-volt dual rating means a single part covers units originally specced at either voltage level, reducing the number of SKUs a technician needs to carry on a service vehicle. Typical applications include residential split-system air conditioners and heat pumps where a combined compressor and fan capacitor is required.
Key Features

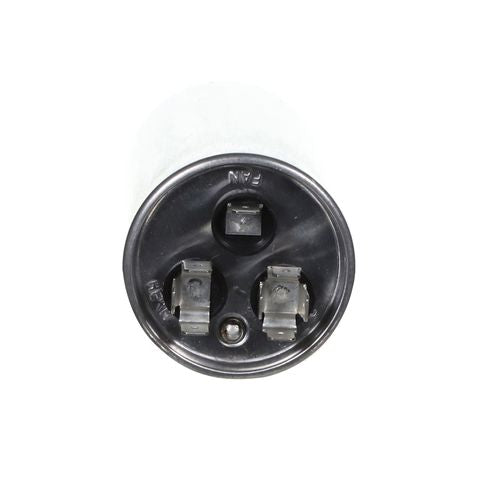

- Dual-section capacitor: 30 MFD for the compressor, 5 MFD for the condenser fan motor
- 440/370-volt dual rating covers a wide range of OEM specifications
- Compatible with 50 Hz and 60 Hz systems
- Round form factor for straightforward drop-in replacement in standard capacitor brackets
- Lightweight at 0.55 pounds, easy to handle in confined equipment compartments
- Suitable for both ducted and ductless HVAC configurations
Compatibility
Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC systems requiring a 30+5 MFD, 440/370-volt round capacitor in ducted or ductless configurations.
Installation Notes
Installation must be performed by a licensed HVAC technician. Always disconnect and lock out power to the unit before servicing the capacitor compartment, and discharge the existing capacitor fully before handling it, as run capacitors can hold a dangerous charge after power is removed. Verify that the replacement MFD ratings and voltage rating match or exceed the OEM specification before installing. Secure the capacitor in the factory bracket and confirm all terminals are tight and properly insulated before restoring power.
Technical Specifications
-
MFD Rating: 30+5 MFD
-
Voltage Rating: 440/370 volts
-
Frequency: 50/60 Hz
-
Shape: Round
-
Capacitance: Dual
-
Application: Ducted and Ductless
-
Dimensions: 1.97 inches x 3.94 inches
-
Weight: 0.55 pounds
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: trcfd305
