Diversitech TP-30AMP 30 Amp Fusible Disconnect Nema 3R

Product Description

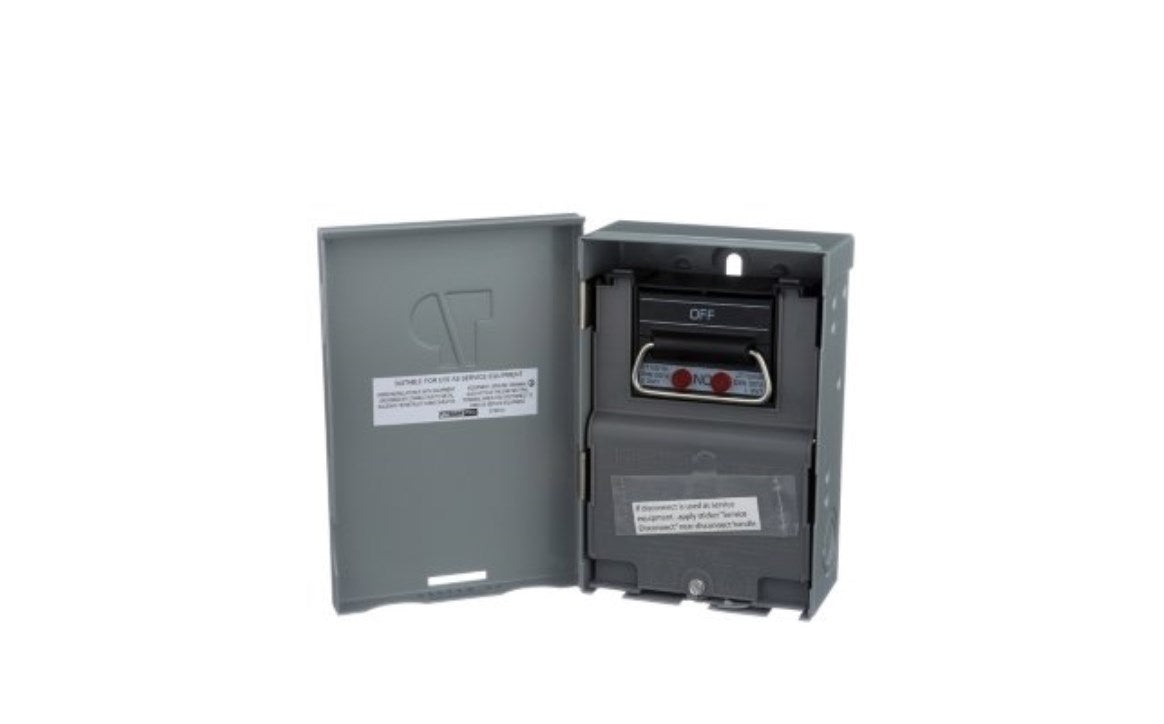

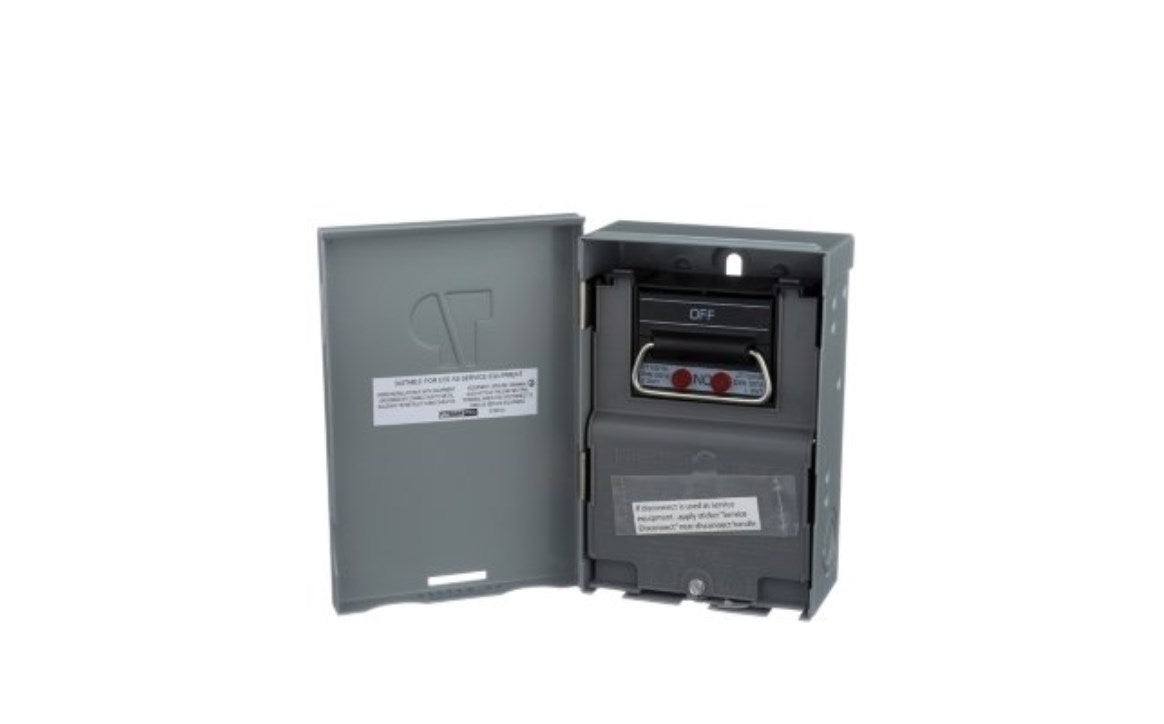

The DIVERSITECH TP-30AMP is a 30-amp fusible disconnect designed for outdoor electrical service applications. Fuses are housed in the pull-out handle, making field replacement straightforward without additional tools. The line, load, and ground terminals are aligned in a consistent layout to simplify wiring during installation. A reversible door accommodates either left- or right-hand swing depending on the mounting location. The side-open door swings past 180 degrees for full access to the interior, and a full dead front provides protection from live components. Blown-fuse indicator lights allow technicians to quickly identify a fault condition without opening the enclosure.

This disconnect is suited for residential and light commercial HVAC installations where a weatherproof disconnecting means is required at the equipment. It is commonly installed adjacent to condensing units, heat pumps, and other outdoor electrical equipment that requires a local lockout point. The NEMA Type 3R enclosure rating makes it appropriate for exposed outdoor locations subject to rain and sleet.

Key Features

• 30-amp fusible disconnect with fuses located in the pull-out handle for easy replacement
• Aligned line, load, and ground terminals for simplified wiring
• Reversible door opens left or right to suit the mounting orientation
• Side-open door swings more than 180 degrees for maximum interior access
• Full dead front protects against contact with live components
• Blown-fuse indicator lights for fast fault identification
• Rain tight and sleet resistant NEMA Type 3R enclosure, UL Listed

Compatibility

Designed as an OEM-style replacement or new-installation fusible disconnect for residential and light commercial outdoor electrical applications requiring a NEMA Type 3R rated enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for disconnecting means. Shut off upstream power at the circuit breaker or main panel before wiring the disconnect. Verify that the fuse rating selected does not exceed the equipment nameplate maximum overcurrent protection value. Confirm the door swing direction before securing the enclosure to the mounting surface to avoid clearance conflicts.

Technical Specifications

• Amperage: 30 amps
• Disconnect Type: Fusible
• Enclosure Rating: NEMA Type 3R
• Weather Resistance: Rain tight and sleet resistant
• Listing: UL Listed IRF9
• Door Swing: Reversible, opens left or right, greater than 180 degrees
• Product Type: Electrical Disconnect

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: TP-30AMP
